Everything You Should Know About Extrusion Stretch Blow Molding in 2025

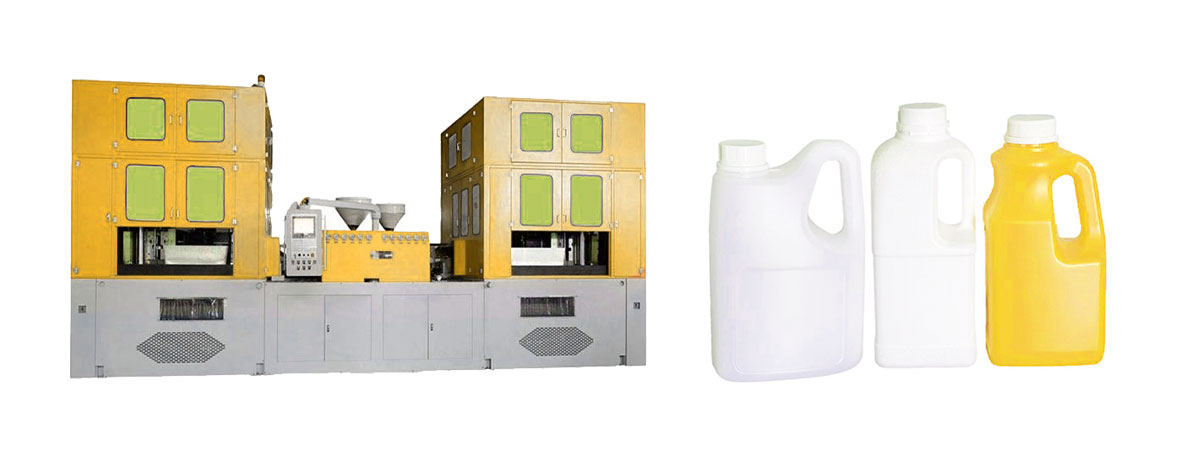

extrusion-stretch-blow-molding

Extrusion stretch blow molding shapes bottles by melting plastic pellets and stretching the parison inside a mold. This process creates hollow containers with improved strength and clarity. In 2025, the global extrusion blow molding machines market will reach about USD 5,150 million, reflecting strong demand. Manufacturers rely on extrusion stretch blow molding for efficient, high-volume production of plastic bottles in food and beverage packaging. Compared to other methods, it delivers cost savings and consistent quality.

Key Takeaways

  • Extrusion stretch blow molding produces strong, clear, and lightweight plastic bottles by stretching and blowing melted plastic inside molds.
  • This process offers high-speed, cost-effective production with consistent wall thickness, making it ideal for PET bottles in food and beverage packaging.
  • Biaxial stretching improves bottle strength, clarity, and durability, allowing containers to withstand pressure and resist damage.
  • Manufacturers can create diverse bottle designs quickly, adjusting size, shape, and features without costly tooling changes.
  • Advances in automation, sustainable materials, and energy-efficient machines are shaping the future of extrusion stretch blow molding in 2025.

Extrusion Stretch Blow Molding

What Is it?

Extrusion stretch blow molding stands out as a specialized process for shaping plastic bottles. Manufacturers use this technique to produce lightweight, strong, and clear containers. The process begins with extrusion, where plastic pellets melt and form a parison—a hollow tube. The parison enters a mold, and an ISBM machine (Injection Stretch Blow Molding machine) stretches the plastic both lengthwise and widthwise before blowing it into its final shape. This mechanical stretching step gives bottles superior strength and clarity compared to other blow molding processes.

Stretch blow molding differs from extrusion blow molding and other methods. In stretch blow molding, the stretching and blowing occur simultaneously, which results in consistent wall thickness and pressure-resistant bottles. This process works best for PET and specialty plastics, making it ideal for beverage, oil, and dairy bottles. The ISBM machine plays a key role by controlling the stretching and blowing phases, ensuring high-speed production and precision.

Tip: Stretch blow molding creates ISBM bottles that withstand internal pressure, making them perfect for carbonated drinks.

Key Features

Extrusion stretch blow molding offers several features that set it apart from other plastic forming techniques. The table below highlights the main characteristics:

CharacteristicExtrusion Stretch Blow Molding (SBM)Extrusion Blow Molding (EBM)Injection Blow Molding (IBM)
ProcessUses a preform that is mechanically stretched and blown simultaneouslyExtrudes a hollow tube (parison) then blows it into shapeInjection molds a preform then blows it into final shape
Material FocusPrimarily PET and specialty plasticsWide variety including HDPE, PP, etc.Small, high-precision containers
Mechanical StretchingYes, mechanical stretching imparts strength and clarityNo mechanical stretching, only blowingNo mechanical stretching, only blowing
Wall Thickness ControlHigh consistency and precisionLess precise controlHigh precision for small containers
Product ExamplesLightweight, durable, clear PET bottles (beverages, oils, dairy)Larger, complex shapes with handles (milk jugs, detergent)Small bottles, high precision containers
Production Speed & VolumeHigh-speed, especially in two-stage processSuitable for large volume and complex shapesSuitable for small volume, high precision
AdvantagesSuperior mechanical strength, clarity, reduced material weightVersatile shapes, lower tooling cost, wide material choiceHigh precision, good for small containers
LimitationsLimited to PET and few specialty plasticsNot ideal for PET bottles requiring clarity and strengthNot suitable for large or high-volume production

Key features of extrusion stretch blow molding include:

  • High-speed production for large volumes of bottles.
  • Superior mechanical strength and clarity due to stretching.
  • Consistent wall thickness, which improves durability.
  • Best suited for PET bottles and specialty plastic containers.
  • ISBM machines provide precise control over the process.

Manufacturers choose extrusion stretch blow molding for its ability to deliver clear, strong, and lightweight bottles. The process ensures reliable quality and efficiency, making it a preferred choice for plastic packaging in 2025.

Process Steps

Parison Formation

The extrusion stretch blow molding begins with the formation of the parison, which serves as the foundation for the final container. The extruder melts plastic pellets and pushes the molten polymer through a die, creating a continuous tube known as the parison. This step requires precise control to ensure uniformity along the length of the parison. Operators adjust the thickness at the extrusion head by changing the position of the outer ring and calibrating mandrel. The conical shape of the outer ring allows for fine adjustments, which helps maintain consistent wall thickness.

Once the parison reaches the desired length, a carriage with open mold plates moves into position beneath it. The mold plates close around the parison, pinching it at both ends. A guillotine or rotary knife trims the parison, separating it from the extruder. The mold then transfers to the blowing station, where the next phase of the process takes place.

Several critical parameters influence successful parison formationAdequate air space between the inner and outer surfaces of the parison is essential for proper air blowing and part formation. If the air space is too small, the finished product may have weak or thin panels. Webbing can occur when opposite sides of the parison touch before air injection, leading to defects. Simulation tests help predict and prevent webbing, especially in deep cavities. Proper venting is also necessary to allow trapped air to escape during mold closing and blowing. Deep cores require larger vents to avoid defects caused by air entrapment.

Note: Uniform wall thickness and proper air space during parison formation ensure strong, high-quality containers and allow for design features like handles or asymmetric shapes.

Stretching and Blowing

After parison formation, the process moves to stretching and blowing. This stage transforms the parison into a finished bottle with enhanced properties. The mold containing the parison enters the blowing station. A stretch rod extends into the parison, stretching it lengthwise. This action aligns the polymer molecules in the axial direction. Next, high-pressure air inflates the parison outward, pressing it against the mold walls. This radial expansion further orients the molecules, creating a biaxial structure.

The machinery used in this step includes stretch rods, blowing mandrels, and high-pressure air systems. These components work together to ensure precise stretching and uniform inflation. The combination of axial and radial stretching, known as biaxial orientation, significantly improves the mechanical properties of the container. The finished bottle becomes stronger, lighter, and more resistant to impact. Biaxial stretching also enhances gas barrier properties and dimensional stability, which are important for packaging carbonated beverages and other sensitive products.

Clarity is another key benefit of this process. Biaxial stretching aligns the plastic molecules, reducing light scattering and minimizing defects such as air bubbles or flow lines. This molecular alignment also prevents crystallization, which can cause cloudiness. As a result, bottles produced by extrusion stretch blow molding maintain excellent clarity and consistent light transmission, even after prolonged use.

The final steps in the blow molding process include cooling the molded bottle to solidify its shape and ejecting it from the mold. Operators may use robots for part removal and perform post-processing tasks such as trimming excess material and leak detection. These steps complete the production cycle and prepare the bottles for packaging and distribution.

Tip: Stretching the parison in both directions during the process creates containers with superior strength, clarity, and durability compared to other blow molding methods.

Advantages

Strength and Clarity

Extrusion stretch blow molding stands out for producing containers with exceptional strength and clarity. The process uses biaxial stretching, which aligns the polymer chains both axially and radially. This alignment forms a highly oriented microstructure, giving containers superior mechanical properties. Manufacturers see improvements in tensile strength, impact resistance, and rigidity. The process also enhances creep resistance, making containers more durable during storage and transport.

Unlike standard extrusion blow molding, which does not orient the molecules, extrusion stretch blow molding creates a tightly arranged molecular network. Microcrystalline regions act as physical crosslinks, boosting strength and clarity. The process involves heating the preform above its glass transition temperature, then stretching it with a rod and high-pressure air. This two-dimensional orientation increases performance and ensures that bottles can withstand internal pressure, making them ideal for carbonated beverages.

Note: Consistent wall thickness and molecular orientation help maintain high quality and clarity in every container.

Design Flexibility

extrusion-stretch-blow-moulding

Extrusion stretch blow molding offers unmatched design flexibility for manufacturers. The process supports custom preform designs, allowing for unique bottle shapes and sizes. Multiple cavity molds, sometimes up to 40 cavities, enable high-volume production of containers with consistent quality. Manufacturers can produce ultra-thin or heavy containers depending on the resin used, meeting diverse packaging needs.

Precise injection-molded neck tolerances allow for complex neck finishes, such as child-resistant or plug seal designs. This flexibility means that containers can serve a wide range of industries, from food and beverage to medical and cosmetics. Adjustments to molds or parison controllers let manufacturers change product volume, appearance, weight, or thickness without extensive tooling changes.

1. Cost efficiency: The process eliminates the need for preforms and uses low-pressure air, reducing overall costs. 2. Product variety: Easy mold and parison adjustments support a wide range of containers across industries. 3. High productivity and quality: Automation enables faster cycles and consistent quality checks. 4. Flexibility: Manufacturers can modify container features quickly, adapting to market demands.

Tip: Design flexibility ensures that containers meet both functional and branding requirements, supporting high quality and innovation in packaging.

Plastic Materials

Common Types

Manufacturers select from a range of plastic materials for extrusion stretch blow molding. Each type offers unique properties that suit different packaging needs. The table below summarizes the most common plastics used in this process, along with their typical applications and key characteristics.

Plastic MaterialTypical Applications in Blow MoldingKey Characteristics
High-Density Polyethylene (HDPE)Consumer liquid bottles, coolers, fuel tanks, industrial drumsTough, lightweight, chemically inert, food-grade, recyclable, durable in harsh climates
Low-Density Polyethylene (LDPE)Squeeze bottles, plastic bags, traffic channelizersFlexible, stress crack resistant, translucent, recyclable
Linear-Low-Density Polyethylene (LLDPE)Flexible packaging, blends with LDPEProvides flexibility and toughness
Polypropylene (PP)Dishwasher tubes, medical parts, automotive componentsStiffer than HDPE, suitable for elevated temperatures, good processability and colorability
Polyethylene Terephthalate (PET)Clear water and soft drink bottles (mostly injection blow molded)Transparent, strong, food-safe, requires extensive drying
Flexible PVCMedical parts, bellows, traffic conesSoft, requires special processing, less common due to health concerns
Nylon (Polyamide)Automotive, electrical connectors, medical devicesHeat and chemical resistant, tough, used in specialized applications

HDPE stands out as the most widely used plastic for bottles and packaging. LDPE and LLDPE provide flexibility for squeeze bottles and soft packaging. PP offers stiffness and heat resistance for medical and automotive parts. PET delivers clarity and strength for beverage bottles, although it appears more often in injection blow molding. Flexible PVC and nylon serve specialized roles in medical and automotive products.

Tip: Choosing the right plastic material ensures the final product meets strength, clarity, and safety standards.

Selection Tips

Selecting the best plastic for extrusion stretch blow molding requires careful consideration of several factors. Manufacturers evaluate resin properties such as density, stiffness, impact strength, and chemical resistance. Processing characteristics like drying requirements and extrusion temperature compatibility also play a role. End-use requirements include operating temperature range, environmental exposure, regulatory compliance, and appearance.

Key selection tips include:

  • Assess the minimum and maximum temperatures the product will face.
  • Determine flexibility or rigidity based on bending stiffness.
  • Evaluate impact resistance for durability.
  • Consider appearance, including color, texture, and gloss.
  • Check for UV resistance if the product will be used outdoors.
  • Review chemical resistance for exposure to fuels or cleaning agents.
  • Factor in cost, recyclability, and sustainability.

Manufacturers often consult technical data sheets and conduct trials when working with new plastic blends or bioplastics. Emerging trends include the use of recycled content, specialty blends, and nanocomposites to improve performance and sustainability.

Note: The right plastic selection balances product performance, processing efficiency, cost, and environmental impact.

Stretch Blow Molding vs. Extrusion Blow Molding

Process Differences

Stretch blow molding and extrusion blow molding use different process steps to create plastic containers. In stretch blow molding, the process begins with forming a parison or preform. The machine then heats and stretches the material before blowing it into the final shape. This stretching step aligns the plastic molecules, which improves the strength and clarity of the finished product. Stretch blow molding stands out because it uses both mechanical stretching and air pressure to form the container.

Extrusion blow molding, on the other hand, starts by melting plastic pellets in an extruder. The molten plastic forms a hollow tube called a parison. The mold closes around the parison, and pressurized air inflates it to match the mold’s shape. After cooling, the machine trims away any excess plastic. Unlike stretch blow molding, extrusion blow molding does not stretch the material before blowing. This difference means that stretch blow molding produces containers with better material orientation and improved properties.

Note: Stretch blow molding creates bottles with higher strength and clarity, while extrusion blow molding offers more flexibility for larger and complex shapes.

Injection Stretch Blow Molding Comparison

Injection stretch blow molding and extrusion stretch blow molding both belong to the family of blow molding processes, but they serve different needs. The table below highlights the main differences:

AspectInjection Stretch Blow MoldingExtrusion Stretch Blow Molding
ProcessPlastic is injected into a mold to form a preform, then stretched and blown.Plastic is extruded into a parison, then stretched and blown.
Product SizeBest for small, high-precision containers under 1L.Suitable for larger bottles and containers.
Product QualityHigh precision, uniform wall thickness, less scrap.More design flexibility, but less uniformity.
ToolingRequires expensive, high-precision molds.Uses less costly, more flexible molds.
MaterialsAcrylic, polycarbonate, polyoxymethylene, polyethylene.HDPE, polypropylene, PET.
Production RateHigh volume, accurate production.Lower precision, but flexible output.

Injection stretch blow molding produces parts with tight dimensional control and minimal waste. This process works well for small bottles that require high quality and consistency. Extrusion stretch blow molding, however, allows for greater design freedom and larger product sizes, making it ideal for bottles and containers used in food, beverage, and industrial packaging.

Cost also plays a role in choosing between these methods. Injection stretch blow molding machines and molds cost more upfront, but they deliver higher efficiency and product quality. Extrusion blow molding molds are less expensive, and the process can handle a wider range of shapes and sizes.

Tip: Companies should select the blow molding process that matches their product’s size, quality, and cost requirements.

Plastic Bottles and Containers

Plastic bottles and containers remain the most widespread application for extrusion stretch blow molding. Manufacturers rely on this process to produce lightweight, impact-resistant bottles for water, soda, and juice. These bottles feature thin walls and well-defined necks, which improve sealing and usability. The process creates containers with superior clarity and strength, making them suitable for both carbonated and non-carbonated beverages. Companies also use extrusion stretch blow molding to manufacture containers for personal care products, household chemicals, and food packaging. The ability to produce bottles with consistent quality and precise dimensions supports high-volume production and meets strict industry standards.

Production efficiency plays a key role in the popularity of extrusion stretch blow molding. Automated systems allow manufacturers to produce thousands of bottles and containers per hour. This high-speed production ensures that companies can meet market demand for plastic bottles in the beverage and consumer goods sectors. The process also enables the creation of containers with unique shapes and sizes, supporting branding and functional requirements.

Note: The combination of lightweight design and impact resistance makes extrusion stretch blow molding the preferred choice for beverage bottles and containers worldwide.

2025 Innovations

In 2025, the extrusion stretch blow molding industry is experiencing rapid technological advancements. Companies like PET Technologies focus on customized PET bottles, aligning design capabilities with market needs. Automation and artificial intelligence now enhance precision, speed, and productivity in bottle and container production. FyagoUnion’s AI-driven machines optimize quality control and reduce waste. Sustainability drives innovation, with manufacturers adopting energy-efficient equipment and integrating recycled PET (rPET) and bio-based materials. Meccanoplastica Group’s machines achieve top energy efficiency ratings, supporting carbon-neutral production goals.

3D printing is transforming mold creation, allowing companies to prototype new bottle and container designs quickly and cost-effectively. Serioplast and Unilever use 3D printed molds to cut prototyping time and costs, accelerating product development. The GWDS parison-shaping system by Tahara offers a versatile solution for complex containers, while Cypet’s flexible machines produce PET bottles ranging from 20 ml to 5 L. Ultralight PET preform designs, such as Factor 101 by KHS and Husky, reduce material usage and container weight.

AspectTrends 2020-2024Projections 2025-2035
Regulatory LandscapeRecycling mandates, waste reductionCircular economy, incentives for PCR PET use
Market DemandBottled beverages, personal careSustainable, biodegradable PET alternatives
Industry AdoptionLightweight, recyclable packagingSmart blow molding, automation
Supply Chain and SourcingTraditional PET resinRecycled PET, bio-based PET
Sustainability and EnergyEnergy-efficient equipmentCarbon-neutral, fully recyclable packaging
Digital InnovationsLimited digital technologyIndustry 4.0, IoT-enabled manufacturing

Production of plastic bottles and containers continues to grow, driven by demand in food, beverage, and healthcare. The market for stretch blow molding machines is projected to reach $1,266.54 million by 2030, with a CAGR of 3.8%. Blow molds market size will expand to $5.8 billion by 2033, reflecting the importance of innovation and sustainability in container production.

Tip: Companies investing in automation, energy efficiency, and sustainable materials will lead the future of plastic bottle and container production.

stretch-molding

Conclusion

Extrusion stretch blow molding stands as a vital technology in 2025, balancing cost, efficiency, and sustainability for plastic packaging. Companies benefit from lightweight, durable containers, rapid production, and versatile design options. Industries such as food, beverage, and pharmaceuticals rely on this process for high-quality packaging.

Companies seeking to innovate should explore advanced machinery, focus on sustainable materials, and prioritize quality control. For those interested in deeper insights, reviewing industry reports or consulting with equipment suppliers can guide successful adoption.

FAQ

What Are the Main Benefits of Extrusion Stretch Blow Molding?

Extrusion stretch blow molding creates bottles with high strength, clarity, and consistent wall thickness. Manufacturers achieve fast production rates and design flexibility. This process supports lightweight packaging and reduces material use.

Which Plastics Work Best for This Process?

Polyethylene terephthalate (PET) and high-density polyethylene (HDPE) perform best. PET offers clarity and strength, while HDPE provides toughness and chemical resistance. Manufacturers select materials based on product needs and regulatory standards.

How Does Stretch Blow Molding Improve Bottle Strength?

Stretch blow molding stretches the plastic in two directions. This action aligns the polymer chains, making bottles stronger and more resistant to impact. The process also improves clarity and barrier properties.

Can Manufacturers Use Recycled Materials in 2025?

Yes, many companies use recycled PET (rPET) and other sustainable plastics. Modern machines handle recycled content efficiently. This practice supports environmental goals and meets new regulations.

What Industries Use Extrusion Stretch Blow Molding Most?

The food and beverage industry leads in using this process for bottles and containers. Personal care, household chemicals, and pharmaceuticals also rely on extrusion stretch blow molding for safe, high-quality packaging.
