How many years has your company been manufacturing ISBM machine?
More than 17 years for injection stretch blow molding machine manufacturing and ISBM molding experience.
ISBM Machine

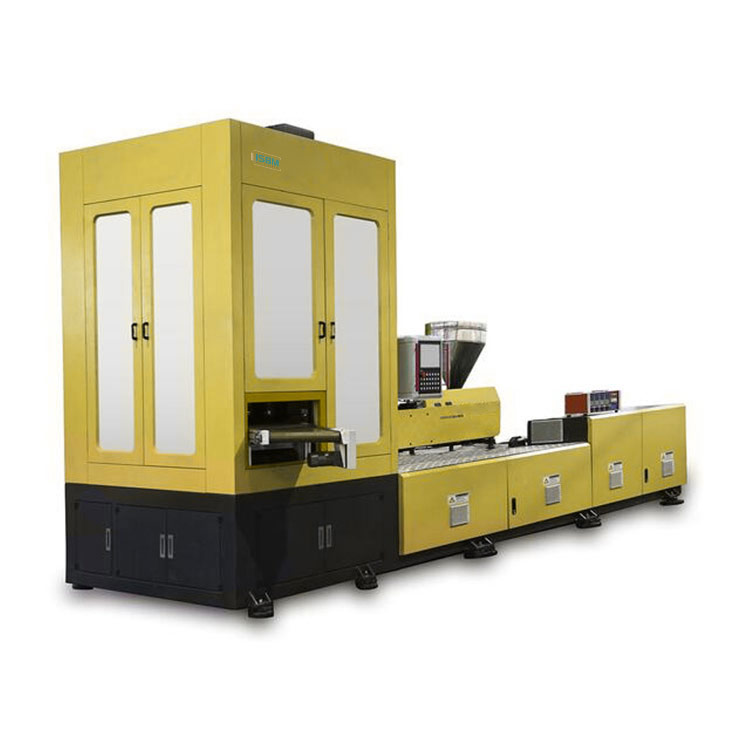

Injection Stretch Blow Molding Machine Manufacturer
17 Years ISBM molding manufacturing
11 Years ISBM machine manufacturer
All Electric ISBM machine
Get A Quote
About ISBM
ISBM Machinery Limited located in Dongguan China, specialized in Single Stage Injection Stretch Blow Molding Machine research & development. Since 2009, we have 13 years ISBM molding design and manufacturing experience. Basis on rich experience molding manufacturing technologies, we have successfully launched All Electric Injection Stretch Blow Molding Machine in 2018. Till now, 4 years running experience assure high stability ISBM machine, widely used in chemical, pharmaceutical, biotechnology, beverage, cosmetic, beauty, medical sectors, etc.
We have two types ISBM Machine:
- Injection stretch blow molding machine (4 stations, electric or hydraulic)
- single stage injection stretch blow molding machine (3 stations, electric or hydraulic)
ISBM machine
ISBM machine (injection stretch blow molding machine) is integrated 4 processes in one machine, include injection process, stretch process, blow process, molding process. No need second stage process, no other equipment to assist, such as, stretch blow molding, blow molding machine, preform machine, preform heating system, injection machine, etc.
Single Stage ISBM machine (single stage injection stretch blow molding machine) is integrated 3 processes in one machine, include injection process, blow process, molding process. No need other extra equipment.
All In One, ISBM Machine
ISBM Machine Videos
PC Sampoo bottle
PET Bottle 1000ml
PET Perfume Bottle
Plastic Reagent Bottles

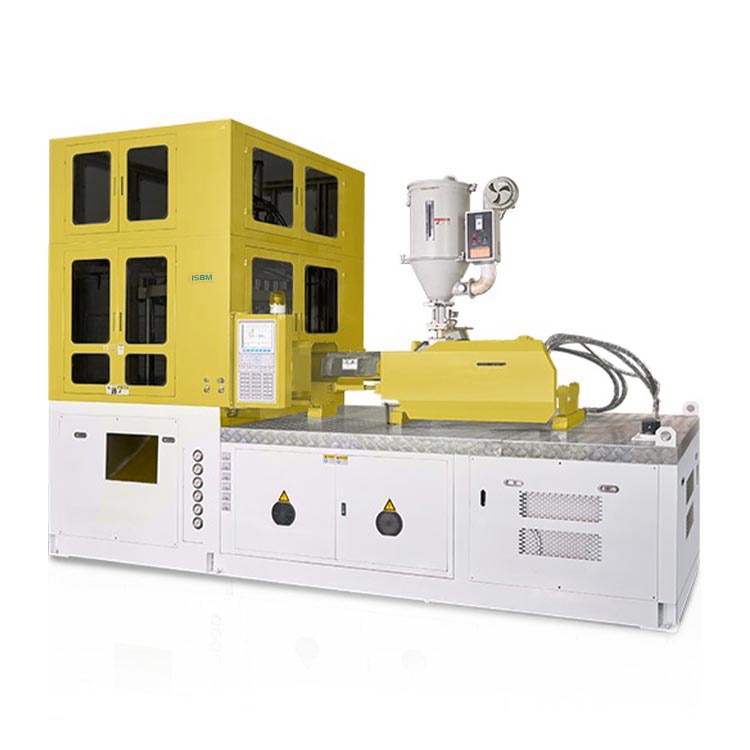

Injection stretch blow molding machine

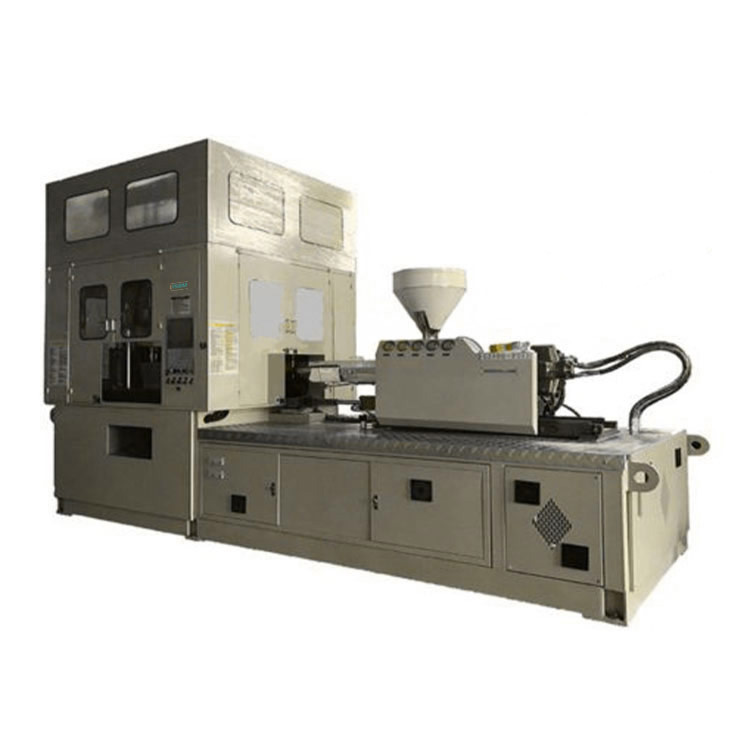

Bottle injection molding machine
Stretch blow molding machines

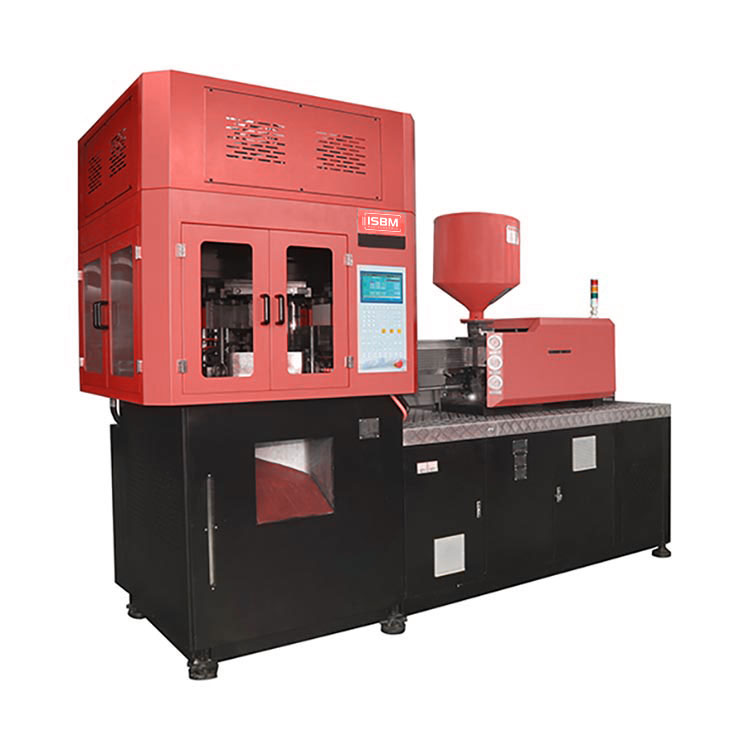

Injection stretch blow moulding machine

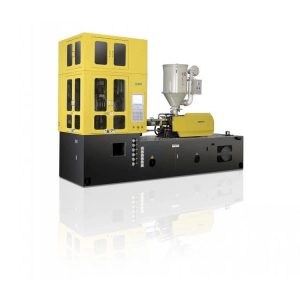

One step injection blow molding machine
Injection blow molding machine
IBM injection blow molding machine

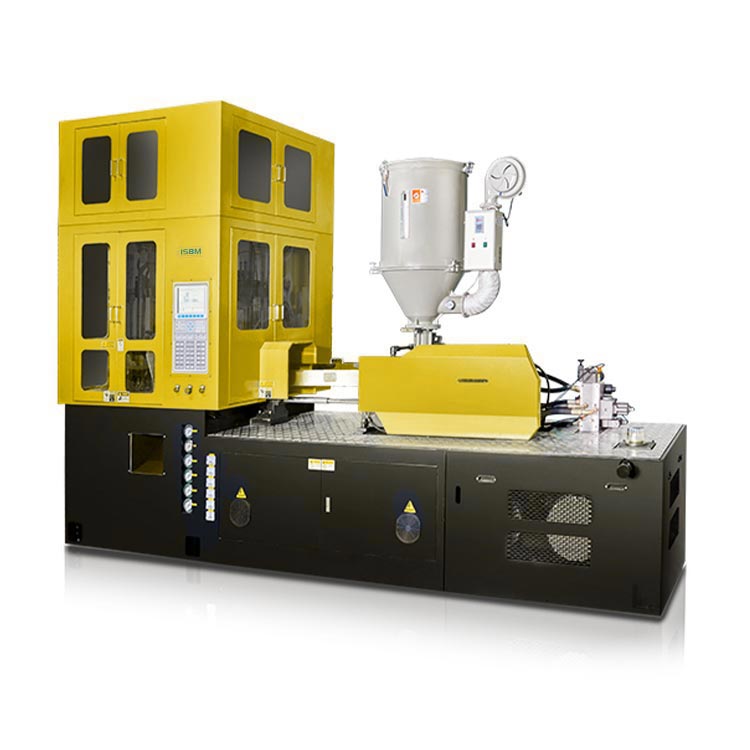

Single stage injection stretch blow molding machine
Structure of ISBM machine
Single Stage Injection Stretch Blow Molding Machine (3 Workstations)
Hydraulics or all electric type, 3 workstations: preform injection / bottle blow / bottle molding
Injection Stretch Blow Molding Machine (4 Workstaions)
Hydraulics or all electric type, 4 workstations: injection molding station / conditioning station / bottle blow molding station / Ejection station

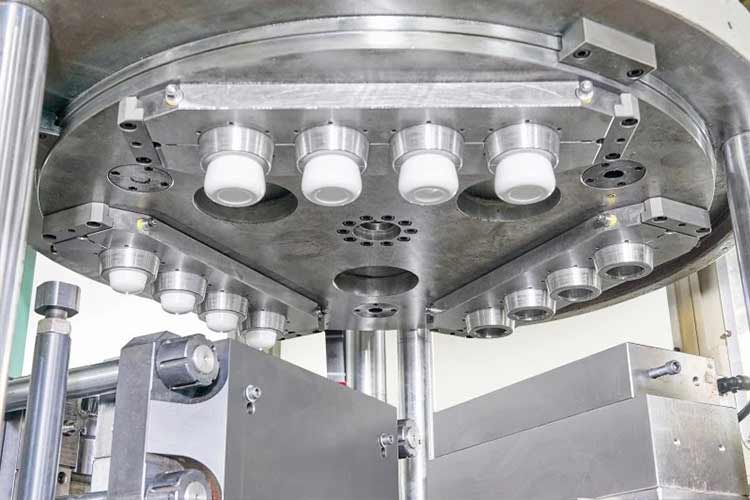

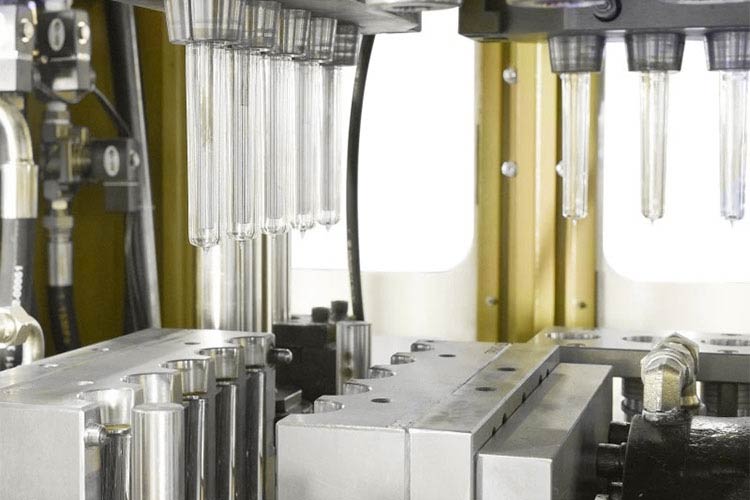

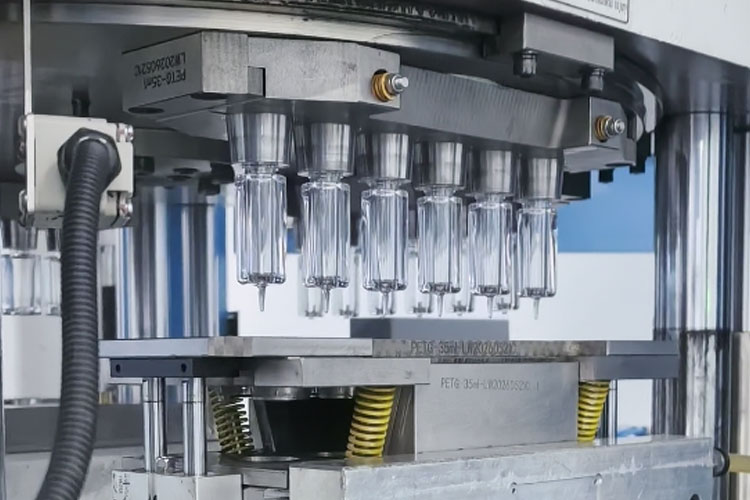

Injection molding (preform)

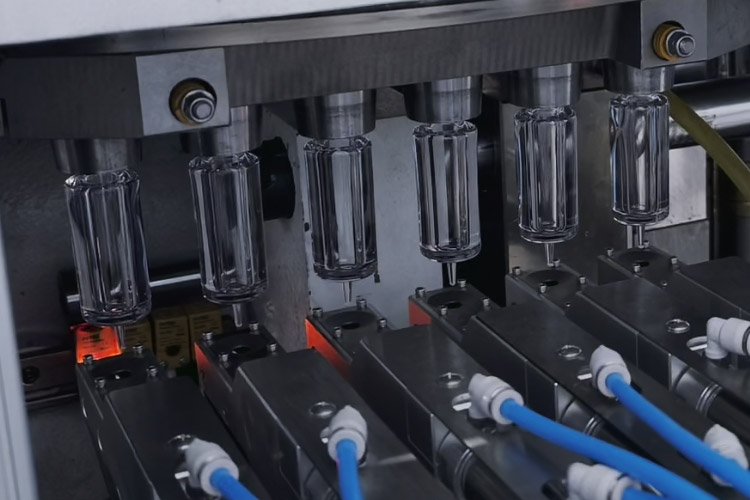

Conditioning station

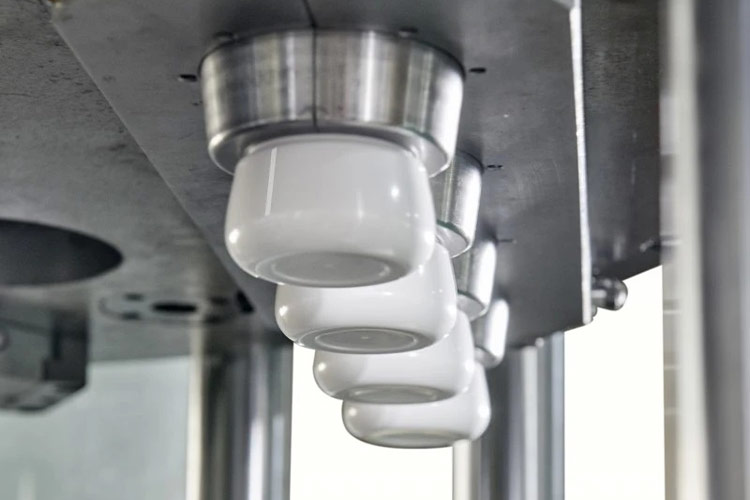

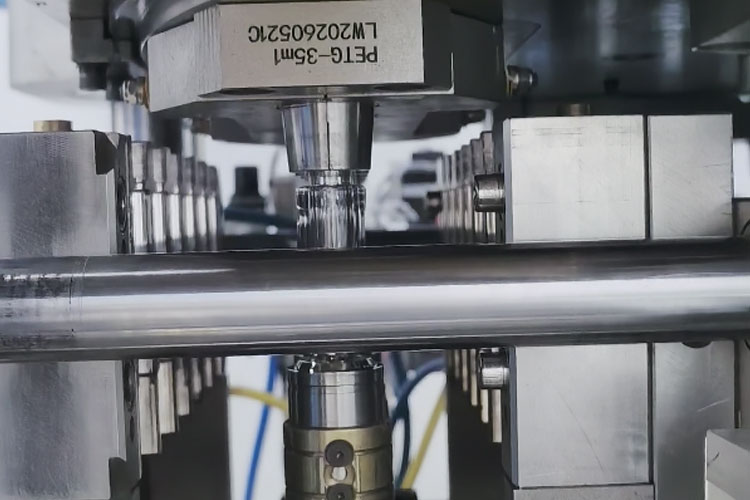

Blow moulding station

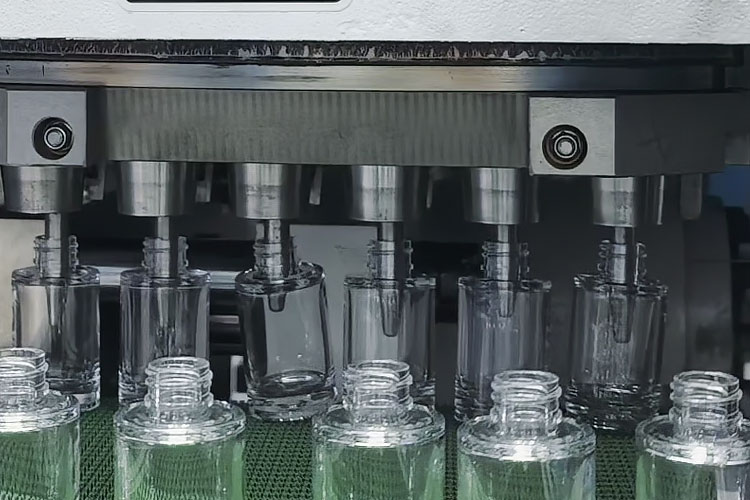

Ejection station
What type plastic can use with our ISBM machine?
More than 10 types plastic resin suitable for ISBM and injection blow molding machine

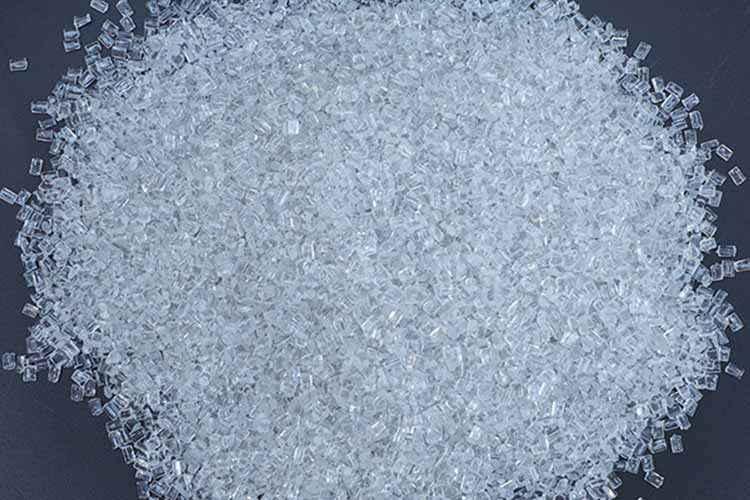

Tritan resin for ISBM molding

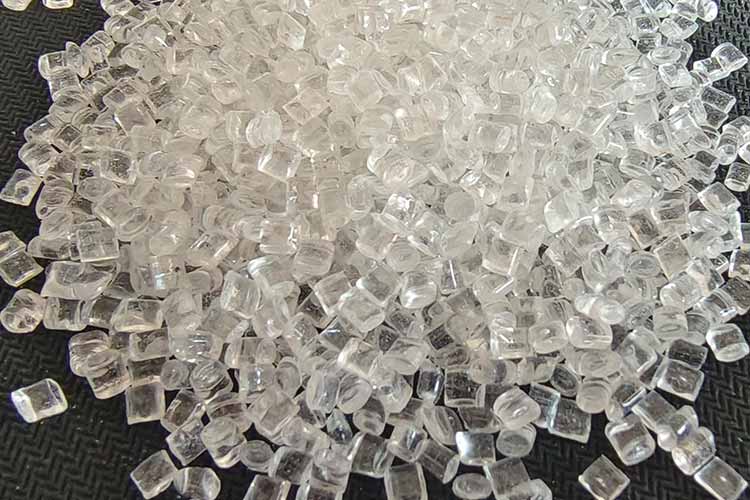

RPET resin for ISBM molding

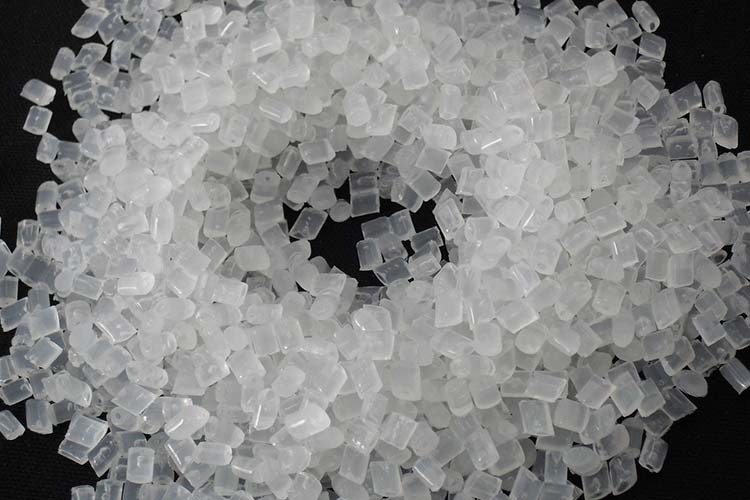

PS resin for ISBM molding

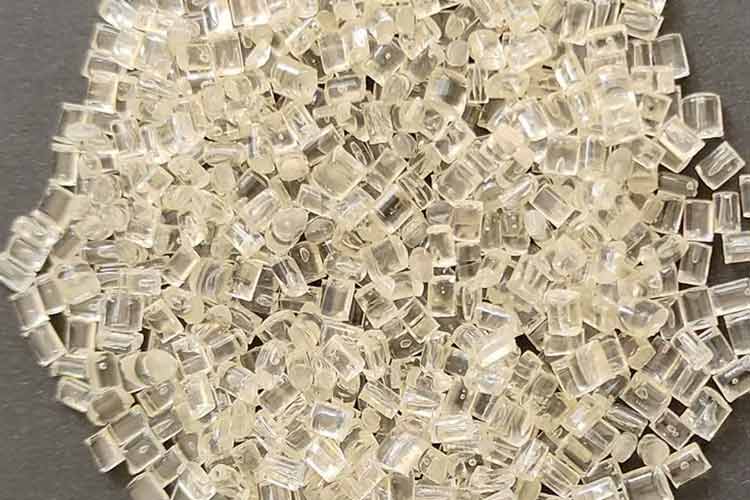

PPSU resin for ISBM molding

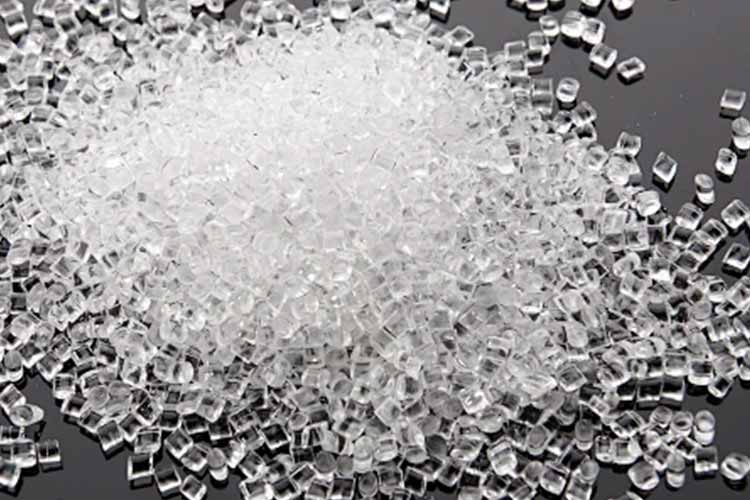

PP resin for ISBM molding

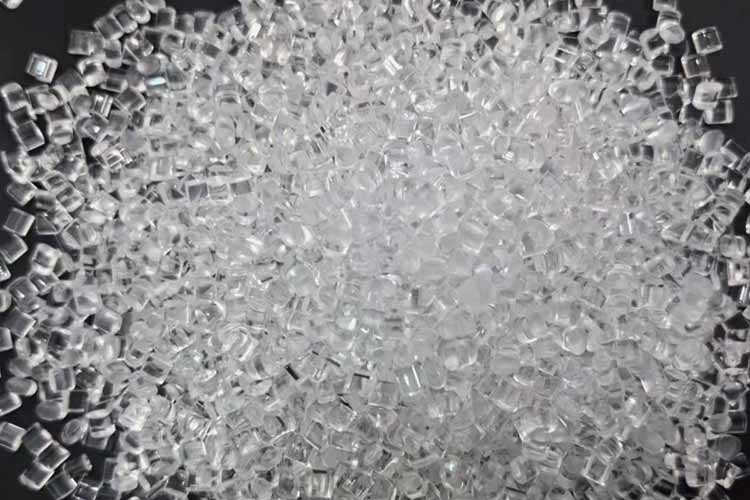

PMMA resin for ISBM molding

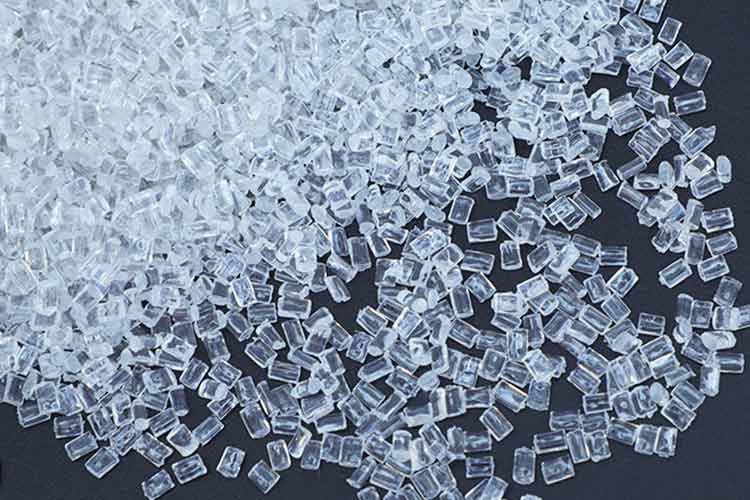

PET resin for ISBM molding

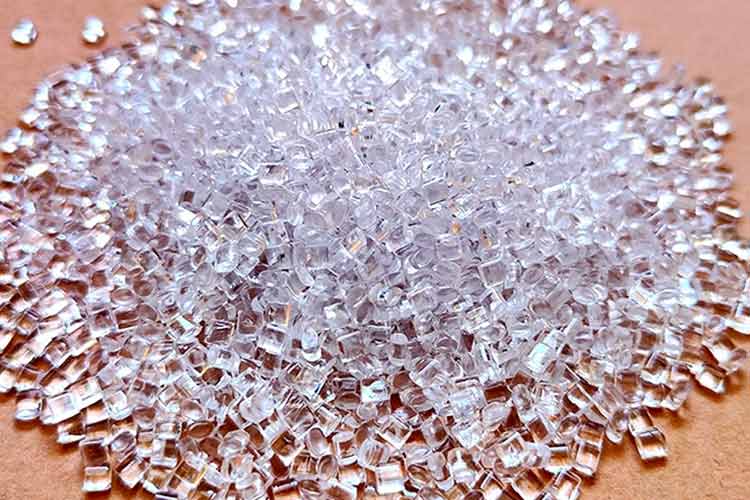

PETG resin for ISBM molding

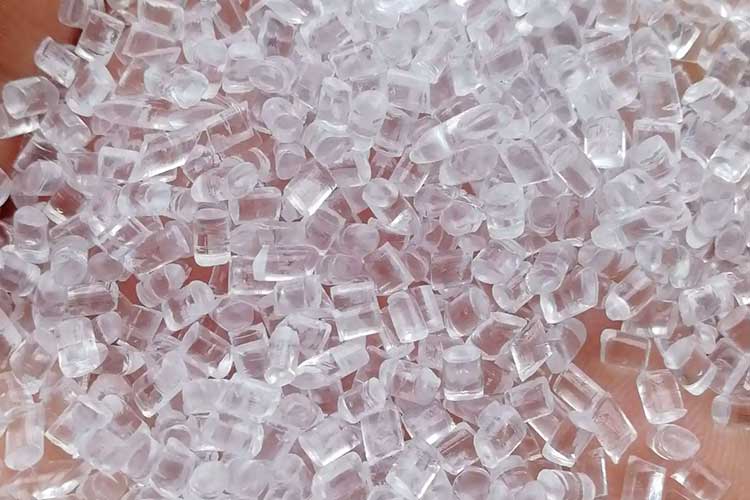

PEN resin for ISBM molding

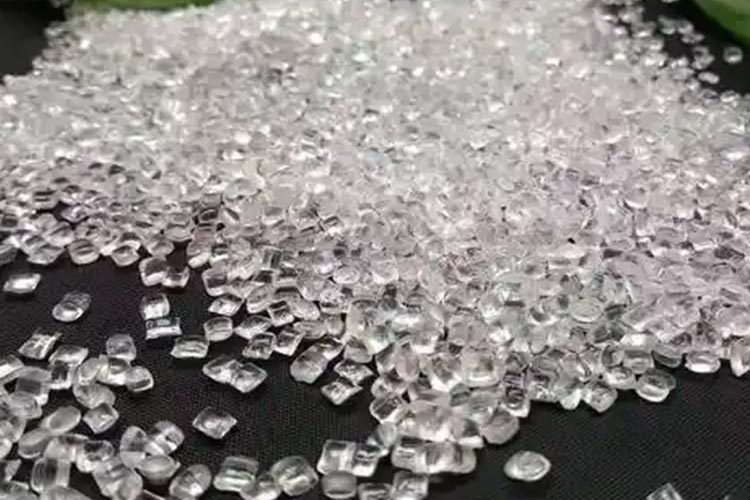

PCTG resin for ISBM molding

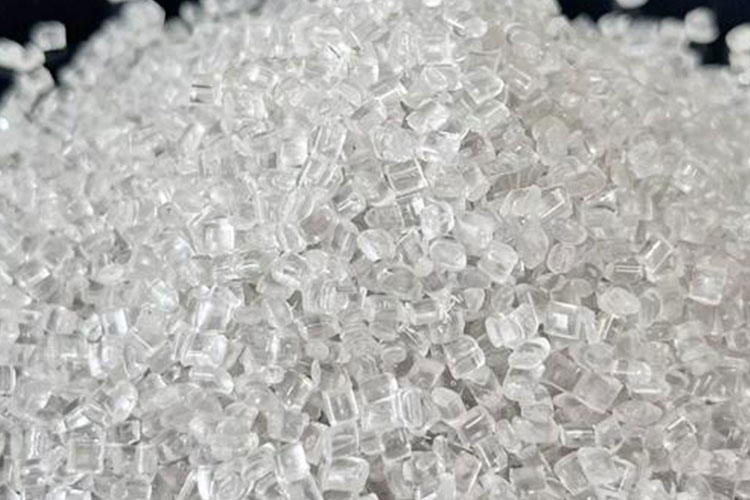

PC resin for ISBM molding

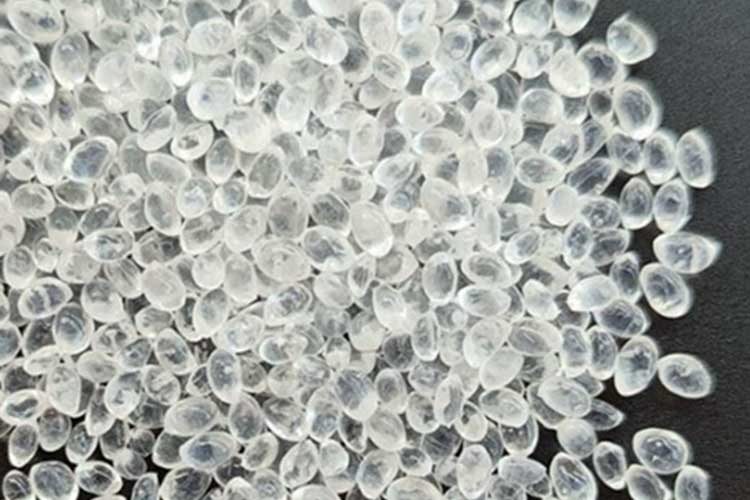

AS resin for ISBM molding

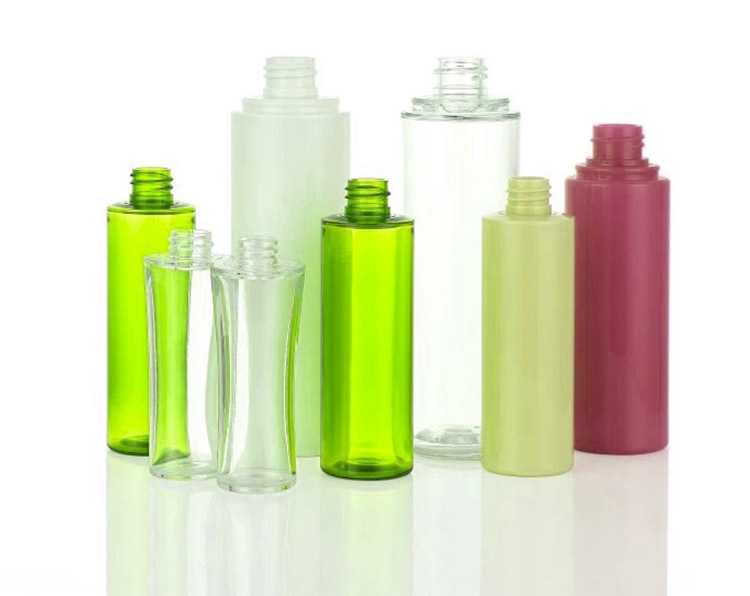

What type bottle can be made by our ISBM machine?
Contact our expert for your dream bottle

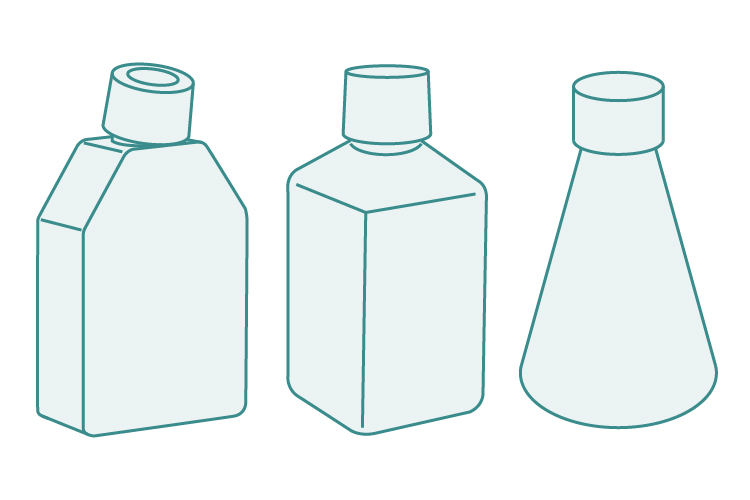

Cell culture flask (Round, Square, Irregular shape)

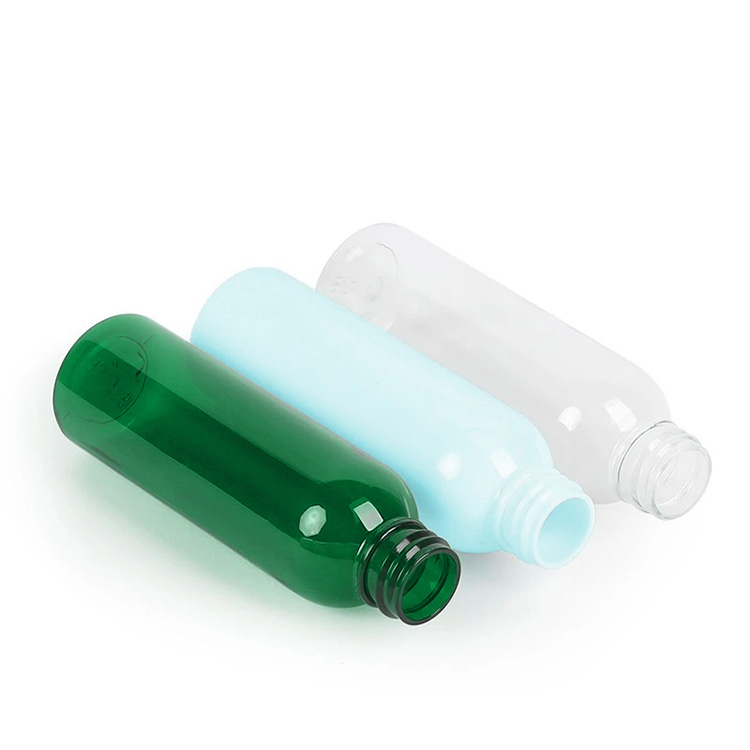

Round bottle

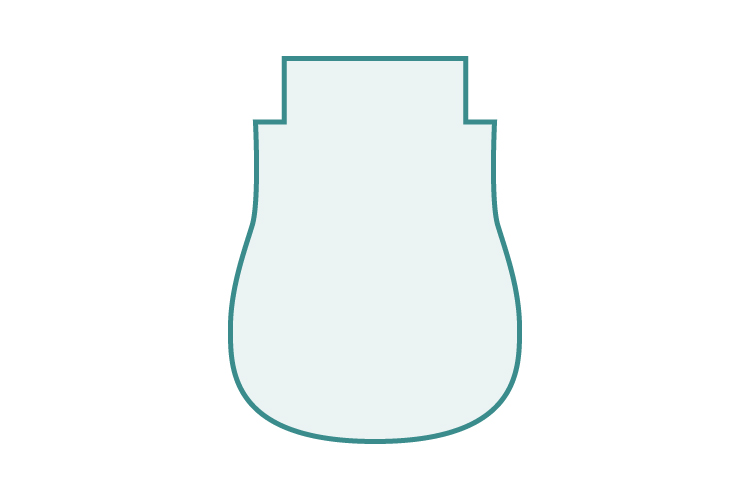

Irregular shape bottle
Sport water jug
Spray bottle

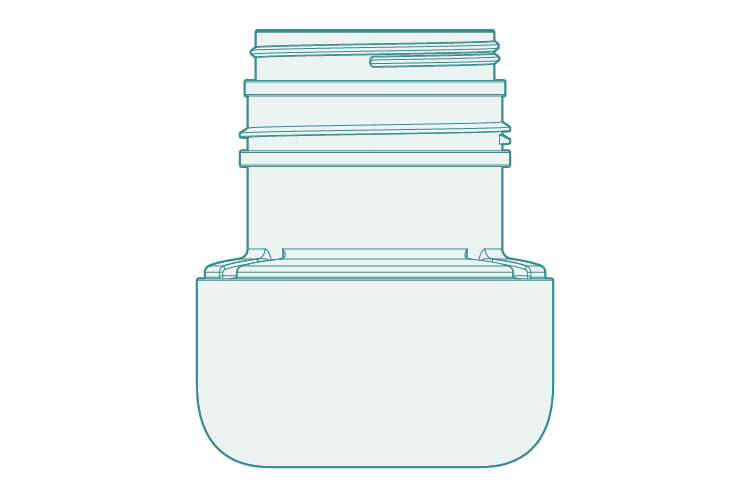

Wide mouth bottle

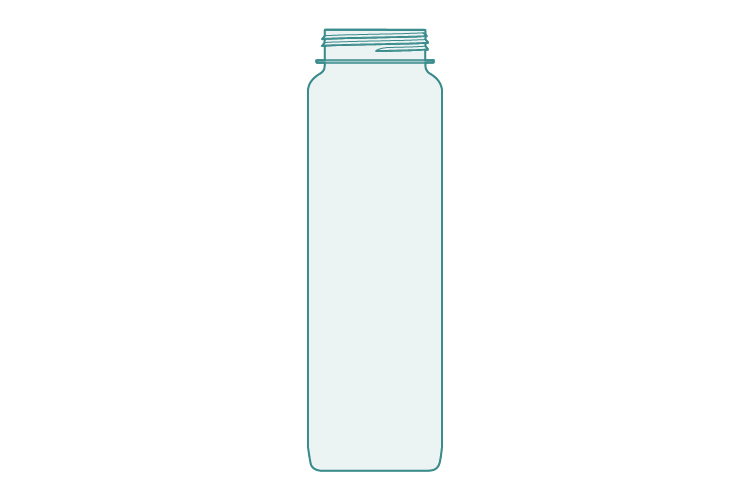

Ultra thin bottle

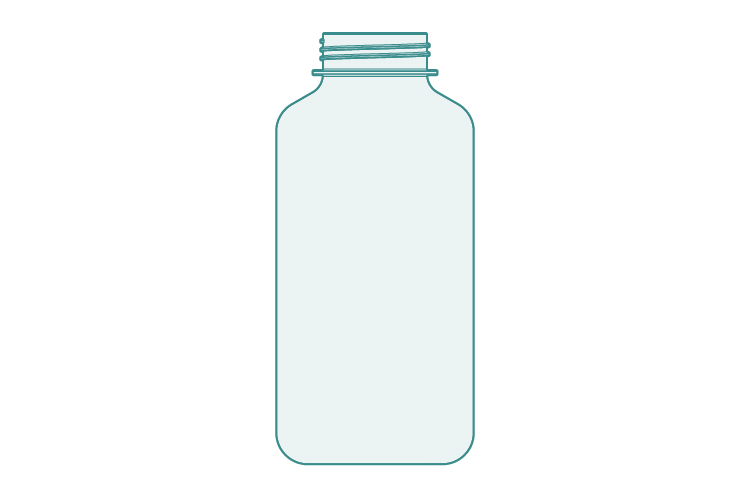

Square bottle
Handheld bottle
Five gallon water jug (PC)
The Case by Our ISBM Machine

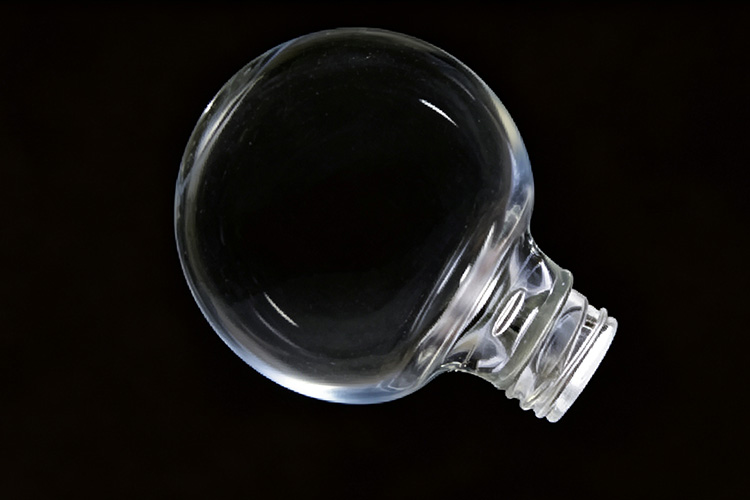

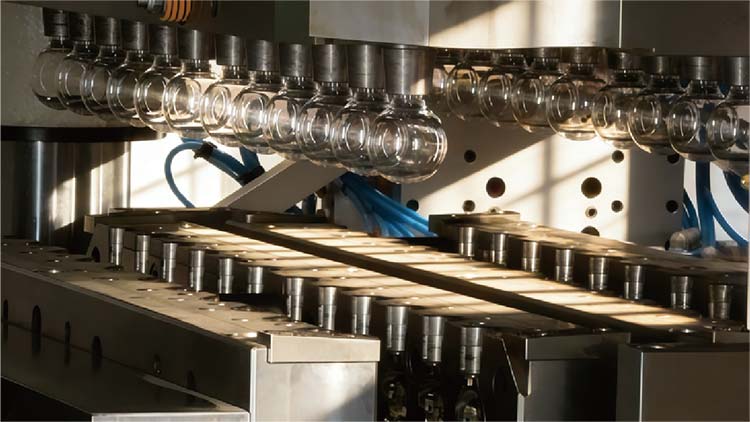

ISBM for light bulb making
Product: Light bulb
Machine model: 700-V4 (4 stations)
Molds: 24 cavities
Cycle time: 13s
Production capacity: 6,624pcs/h, 158,976pcs/24h
Machine model: 700-V4 (4 stations)
Molds: 24 cavities
Cycle time: 13s
Production capacity: 6,624pcs/h, 158,976pcs/24h
PET light bulb
Material: PET
Neck diameter: 10.5mm
Bulb diameter: 40mm
Height: 52mm
Weight: 4.6g
Neck diameter: 10.5mm
Bulb diameter: 40mm
Height: 52mm
Weight: 4.6g

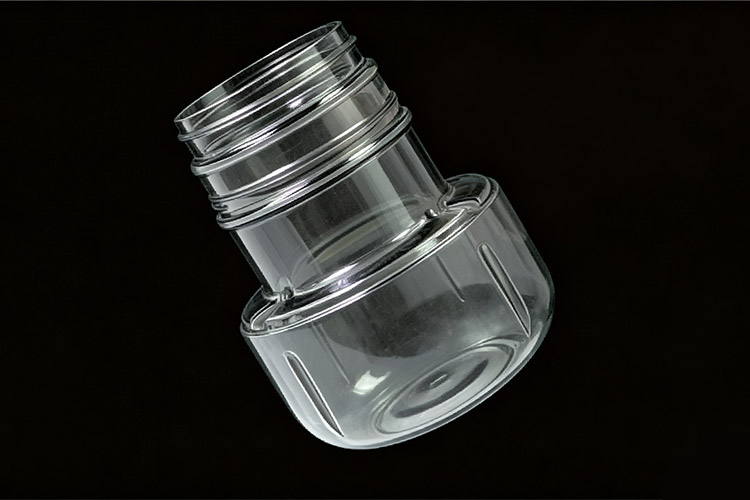

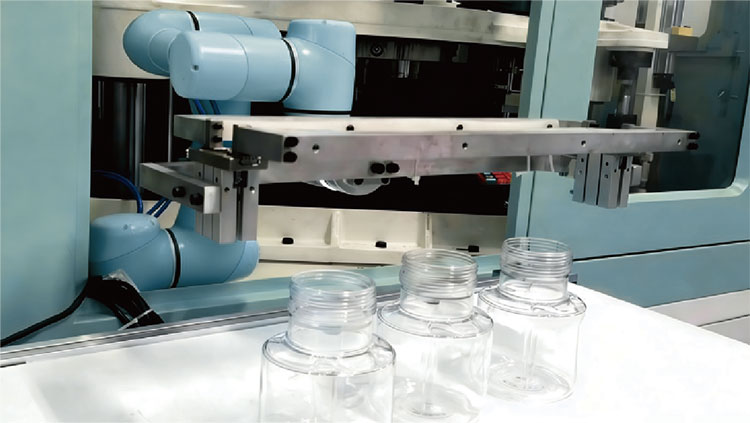

IBM for juice jar making
Product: Juice jar
Machine model: 250-V3 (3 stations)
Mold: 3 cavities
Cycle time: 16s
Production capacity: 675pcs/h, 16,200pcs/h
Machine model: 250-V3 (3 stations)
Mold: 3 cavities
Cycle time: 16s
Production capacity: 675pcs/h, 16,200pcs/h
Tritan juice jar
Matrial: Tritan
Neck diameter: 72.25mm
Jar diameter: 119.23mm
Height: 178.53mm
Weight: 124.7g
Neck diameter: 72.25mm
Jar diameter: 119.23mm
Height: 178.53mm
Weight: 124.7g
Why choose our ISBM machine?
- All electric ISBM machine
- Hydraulic or Hybrid Single Stage ISBM machine
- Will not leak oil
- Adapted ISBM molds of ASB Machine and Aoki Machine
- Short cycle time
- Short lead time
- Fast delivery
- Worldwide shipping
- Super easy to install
- Super easy to operate
- Online support
- Videos guide
- 12 months warranty
- Fit with any shape of plastic bottle
Multiple type plastic materials: PP, PC, PET, PETG, PPSU, PEN, PS, Tritan, etc.
Our Project Capabilities
What we can do for you?
1. Machine manufacturing
2. Mold design and manufacturing
3. New bottle/Jug tailor-made
4. Bottle production tunkey solution

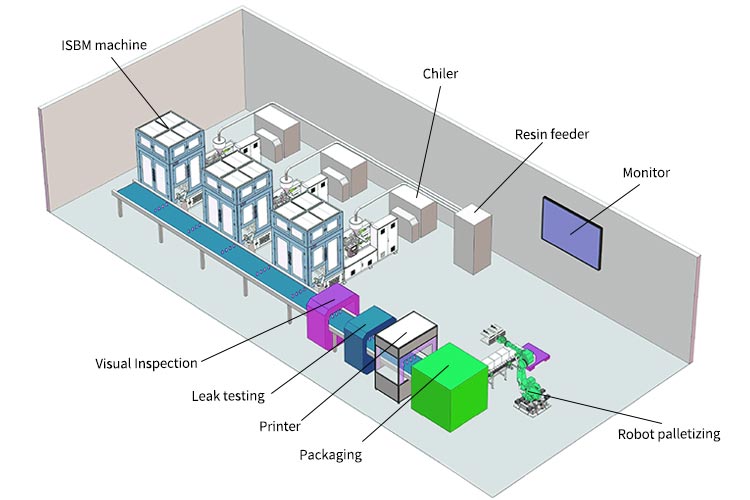

5. Fully automation plastic bottle production line
2. Mold design and manufacturing
3. New bottle/Jug tailor-made
4. Bottle production tunkey solution
5. Fully automation plastic bottle production line
How to choose ISBM machine?
Need to use which model ISBM machine?
Before selection, you need to confirm information as below:
1. Bottle materials
2. Bottle drawing
3. Bottle weight
4. Bottle application
5. Capacity requirement
6. Machine type
6. Machine type
7. Local electricity supply information
8. Auxiliary equipment requirement
9. The installation location
Contact our expert for your dream bottle project.
ISBM Machine FAQ
Do your ISBM machine can be alternative solutions ASB or AOKI model?
Yes, it’s alternative option for ASB or AOKI machine.
Which countries successfully installed your ISBM machine?
America, Australia, Brazil, Crotia, Turkey, Jordan, Spain, etc. … …
Can you send your engineers for installation, comissioning and training?
Yes, but it’s optional budget. Usually, the client is responsible for airfare, accommodation, meals, local transportation cost, and engineer allowances. For detail, please contact our sale representative.
How about the lead time after confirm the order?
After con
