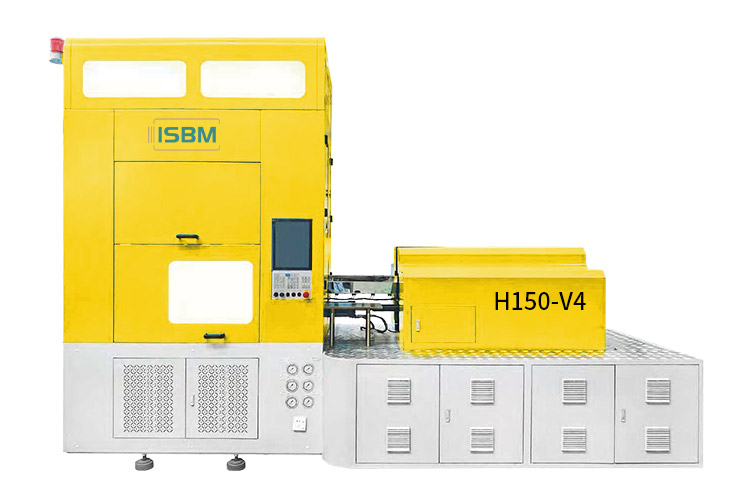

The H150-V4 is a four-station machine with a catalog specification for PET and PETG containers. It is a candidate for bottle projects where the proposed mold, neck handling and machine installation need to be reviewed together.
Compare the bottle dimensions, selected injection package and mold interfaces for your project.
PCS retains the catalog's product-quantity terminology; confirm the cavity arrangement for the proposed mold. Installed power is an electrical specification, not a measured production-energy figure.
Model overview
A Four-Station PET and PETG Configuration
The H150-V4 combines a hydraulic classification with the servo-pump systems described in its catalog. Its specification lists PET and PETG and provides four screw options, from 40 mm through 60 mm.
The selected injection package is an important part of the proposal. Compare the complete configuration, including screw, tool and bottle; the listed screw alternatives are not all installed simultaneously.
The 4.2 m machine length and 1.4 m width provide the starting dimensions for the production-cell layout. Review service access, mold handling and container removal alongside the bottle specification.
Form the preform using the selected screw option and the specified PET or PETG grade.
02
Conditioning
Prepare the preform for stretch blowing with the proposed conditioning tool and settings.
03
Stretch Blowing
Stretch and blow the preform within the approved bottle and mold configuration.
04
Take-Out
Remove the molded container with the neck handling and removal sequence defined for the tool.
Technical data
H150-V4 Machine Specifications
Select the injection option and review the station movements against the bottle and mold drawings. Keep the machine cooling and oil-cooler requirements separate in the installation schedule.
Machine
Parameter
Specification
Drive
Hydraulic
Stations
4
Specified materials
PET, PETG
Dimensions, L × W × H
4.2 × 1.4 × 2.9 m
Machine weight
6 t
Oil tank capacity
300 L
Electrical, Air and Cooling
Parameter
Specification
Motor power
43.2 kW
Heating power
10 kW
Total installed power
53.2 kW
Blowing-air pressure
2.0 ~ 3.5 MPa
Cooling-water pressure
0.4 ~ 0.6 MPa
Oil-cooler water pressure
0.3 ~ 0.4 MPa
Oil-cooler water temperature
20 ~ 25 °C
Voltage
370 ~ 400 V
Injection Screw Options
Screw diameter
Theoretical injection volume
Rotation speed
40 mm
188 cm³
270 rpm
50 mm
350 cm³
220 rpm
55 mm
450 cm³
220 rpm
60 mm
600 cm³
220 rpm
Each row pairs a screw diameter with its listed theoretical volume and rotation speed. Confirm usable shot mass for the selected resin and preform; theoretical volume is not a bottle-weight rating.
Station and Mold Movements
Parameter
Specification
Injection clamping force
150 kN
Injection upper stroke
250 mm
Injection lower stroke
205 mm
Conditioning core stroke
250 mm
Conditioning cavity stroke
230 mm
Blow clamping force, single side
200 kN
Blow core stroke
250 mm
Blow mold stroke
75 + 75 mm
Take-out stroke
170 mm
Evaluate a complete bottle, screw and tooling package. Identify the resin grade, target bottle weight, selected injection option and mold arrangement in the technical proposal. Agree on the trial and acceptance conditions for that configuration.
Container configuration
Product References: 1 ~ 8 PCS
The 1 PCS reference pairs a 118 mm body with an 83 mm neck and a 210 mm height. At 8 PCS, the reference is a 26 mm body, 15 mm neck and 100 mm height.
Swipe horizontally to view all columns.
QuantityPCS
Body diametermm
Bottle heightmm
Neck sizemm
Weight referenceg
1
118
210
83
130
2
80
210
62
65
3
66
150
48
43
4
56
150
38
32
5
54
150
32
26
6
45
150
25
22
7
28
100
17
18
8
26
100
15
16
Read each row as one matched reference. Body, neck, height and weight limits from different rows must not be combined. Final suitability depends on the bottle, preform and mold design.
PCS is the catalog's product-quantity label. Confirm how the selected tooling arrangement relates it to active cavities and output before using it in a production calculation.
Drive and component configuration
Define the Supplied Hydraulic and Control Package
The catalog describes servo-pump combinations, control equipment and actuation alternatives. Identify the actual supplied package and any substitutions in the quotation.
Drive and Control Systems
Item
Catalog reference
Servo-pump package
Inovance with Sumitomo or WEICHI with OFITE
PLC
Inovance or MIRLE
Blow-clamp actuation
Hydraulic or dual-servo option
Plasticizing drive
Hydraulic or servo option
Valves and Temperature Control
Item
Catalog reference
High-pressure valve
Parker
Air cylinder
AirTAC
Hydraulic valve
YUKEN
Temperature control
Integrated control box or built-in system
The listed alternatives describe the catalog reference. They do not mean that every alternative is included in one machine.
Tooling and installation
Assess the Mold Interface and Production-Cell Layout
For an existing mold, supply the original machine details and interface drawings. Review mounting, available strokes, neck components and container removal before confirming reuse.
A Starting Point for an ASB-12M Tooling Assessment
The catalog mentions an ASB-12M mold interface. Use this reference for a drawing comparison alongside the 250 mm upper and 205 mm lower injection strokes.
Conditioning core and cavity strokes are 250 and 230 mm, followed by a 170 mm take-out stroke. Review these movements together with mounting dimensions, neck handling and the removal sequence.
A reference to another mold system does not establish compatibility with every tool in that family. Confirm the fit and any required modifications through the tooling assessment.
Separate Cooling and Electrical Requirements
Motor power is 43.2 kW and heating power is 10 kW, giving a total installed power of 53.2 kW. Keep these electrical figures separate from operating-energy measurements.
The oil-cooler circuit specifies 0.3 ~ 0.4 MPa water pressure and 20 ~ 25 °C water temperature. The machine cooling-water entry is 0.4 ~ 0.6 MPa. Preserve the separate connections and conditions in the installation schedule.
Allow service access to the 300 L oil tank and handling space around the 6 t machine, in addition to its published outline.
Length
4.2 m
Width
1.4 m
Height
2.9 m
Related models
Compare Complete Machine Configurations
Use the same bottle drawing and required accepted output when comparing H150-V4 with another model. A similar bottle-size table does not establish an identical drive, injection unit or installation requirement.
Review the selected screw, mold interface, plasticizing arrangement and utility schedule as one proposal.
Plasticizing drive, electrical specification and machine dimensions
H150-V4-VE
All-electric configuration, servo package, screw speed and installation
120-V4
Separate machine and tooling proposal based on the same bottle drawing
Model questions
Questions About the H150-V4
Clarify the product-quantity references and the configuration differences before requesting a comparable machine proposal.
Is the product table an eight-cavity production guarantee?
It lists quantities from 1 to 8 PCS. Confirm how the selected tooling arrangement relates that quantity to active cavities and output before using it in a production calculation.
Why compare H150S-V4?
It has a separate plasticizing-drive entry and a different electrical and dimensional specification. The bottle-size table is similar, so the drive and process proposal become important comparison points.
What distinguishes H150-V4-VE?
It is a separate all-electric configuration with its own servo, screw-speed and installation specification. Compare the complete machine packages for the same bottle and output requirement.
Discuss your PET or PETG project
Request an H150-V4 Tooling Review
Send the bottle drawing and, where relevant, the existing mold interfaces. Request a proposal that identifies the selected screw, mold, resin grade, auxiliary equipment and acceptance conditions.
Body, height and neck-finish drawing
PET or PETG grade and target bottle weight
Existing mold drawings and original machine details
Required accepted output and bottle-trial criteria
Available floor space, power and cooling connections
Share a drawing link in the message, or send your files to info@isbmmachine.net.
Confirm mounting, neck handling, available strokes and container removal before approving tooling reuse.
