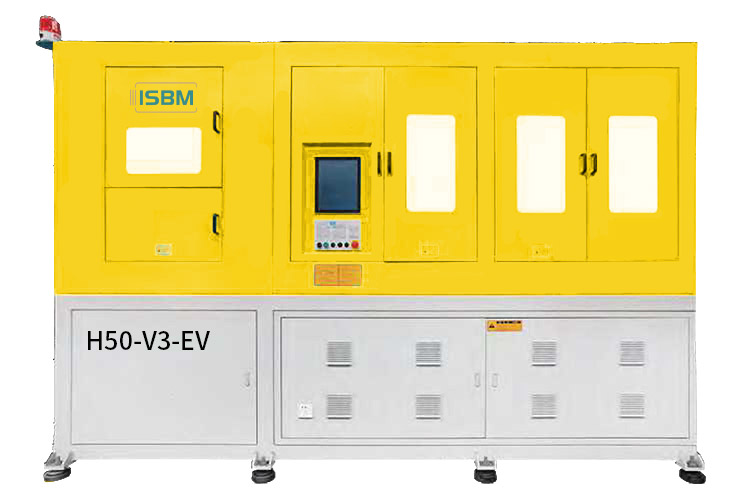

The H50-V3-EV is a three-station all-electric model with five sets of servo systems described in its catalog. The machine specification lists PET and PETG, with selectable screw configurations for review against the proposed container and mold.
Specify the injection option, servo package and tooling arrangement for your bottle project.
Screw options are 40, 50 and 55 mm. Installed power describes the electrical configuration; operating energy should be measured under defined production conditions.
The H50-V3-EV catalog describes five sets of servo systems and identifies injection, stretch blowing and take-out within a three-station model. Its technical specification is separate from the four-station H150 range.
The drive package includes a servo-driven turntable, a reducer and a lead screw, with a dual-servo blow-clamping arrangement described in the catalog. Confirm the servo-controlled functions and selected component alternatives in the quotation.
Form the preform using the selected screw configuration and specified PET or PETG grade.
Stretch and blow the preform within the proposed mold and servo-controlled clamping arrangement.
Remove the molded container using the configured take-out movement.
Connect the selected screw, material grade and usable shot specification with the bottle mass and proposed mold. Review the complete configuration before selecting the machine.
| Parameter | Specification |
|---|---|
| Drive | All-electric |
| Stations | 3 |
| Specified materials | PET, PETG |
| Servo systems | 5 sets |
| Dimensions, L × W × H | 3.8 × 1.2 × 2.5 m |
| Machine weight | 3.5 t |
| Screw diameter | Rotation speed |
|---|---|
| 40 mm | 240 rpm |
| 50 mm | 220 rpm |
| 55 mm | 220 rpm |
Request the approved usable shot specification and material basis for the selected screw option. Confirm the preform, bottle weight and molding conditions together.
| Parameter | Specification |
|---|---|
| Injection clamping force | 50 kN |
| Injection upper stroke | 280 mm |
| Injection lower stroke | 280 mm |
| Blow clamping force, single side | 100 kN |
| Blow core stroke | 100 mm |
| Blow mold stroke | 60 + 60 mm |
| Take-out stroke | 150 mm |
| Parameter | Specification |
|---|---|
| Motor power | 34.8 kW |
| Heating power | 10.4 kW |
| Total installed power | 45.2 kW |
| Blowing-air pressure | 2.0 ~ 3.5 MPa |
| Cooling-water pressure | 0.4 ~ 0.6 MPa |
| Voltage | 370 ~ 400 V |
Select the injection option for the specified resin grade. PET and PETG are listed in the machine specification. For either material, connect the approved shot specification with the actual bottle mass, preform and proposed mold arrangement.
The 1 PCS entry pairs a 100 mm body with a 60 mm neck and a 150 mm height. The 6 PCS entry lists a 28 mm body and a 17 mm neck at the same height reference.
Swipe horizontally to view all columns.
| QuantityPCS | Body diametermm | Bottle heightmm | Neck sizemm | Weight referenceg |
|---|---|---|---|---|
| 1 | 100 | 150 | 60 | 130 |
| 2 | 90 | 150 | 38 | 65 |
| 3 | 62 | 150 | 30 | 43 |
| 4 | 45 | 150 | 27 | 32 |
| 5 | 35 | 150 | 20 | 26 |
| 6 | 28 | 150 | 17 | 22 |
PCS is the catalog's product-quantity label. Confirm how it maps to the proposed mold and production cycle; it does not independently establish the cavity count.
Read each row as one matched reference. Do not combine dimensions or weight references from different rows. Request an approved bottle envelope for the selected preform and mold.
Use the catalog references to define the supplied drive and control package. Where alternative brands are listed, identify the selected equipment and any substitutions in the order.
| Item | Catalog reference |
|---|---|
| Servo and PLC system | Inovance or MIRLE |
| Servo motor | Inovance or WEICHI |
| Turntable drive | Yaskawa or WEICHI servo with TSUNTIEN reducer |
| Blow-clamping structure | Dual servo with pressure compensation |
| Item | Catalog reference |
|---|---|
| High-pressure valve | Parker |
| Air cylinder | AirTAC |
| Lead screw | NSK |
| Temperature control | Integrated control with a built-in system option |
The listed brands and alternatives describe the catalog reference. Confirm the actual supplied package in the quotation; alternative entries are not all included simultaneously.
Review mold mounting, preform handling and container removal together with the machine outline and service connections.
The machine lists equal 280 mm upper and lower injection strokes, a 100 mm blow-core stroke and a 150 mm take-out stroke. Check these movements against the actual tool and bottle drawing.
The blow-mold stroke is listed as 60 + 60 mm, with a 100 kN single-side blow-clamping entry. Keep those definitions attached to the proposed mold and dual-servo clamping arrangement.
The listed envelope is 3.8 × 1.2 × 2.5 m, with a weight of 3.5 t. Confirm mold access, removal clearance and utility connections in the installation drawing.
Motor power is 34.8 kW and heating power is 10.4 kW, giving a catalog total of 45.2 kW. These are installed electrical figures. Compare operating energy under defined production conditions.
The 50-S6 is another three-station all-electric option with a different injection unit and machine specification. Its listed length is 3.4 m rather than 3.8 m.
Submit the same bottle drawing, PET or PETG grade, target weight and required accepted output for both proposals. Include mold mounting and removal clearance as well as bottle dimensions in the comparison.
| Reference | H50-V3-EV | 50-S6 |
|---|---|---|
| Process stations | 3 | 3 |
| Screw diameter | 40 / 50 / 55 mm | 36 mm |
| Machine length | 3.8 m | 3.4 m |
Check the station sequence, the meaning of product-quantity references and the basis for comparing another electric model.
The three stations cover injection, stretch blowing and take-out. Evaluate the proposed mold, preform and resin together for that sequence, including bottle quality and the measured production cycle.
Not by itself. PCS is the catalog's product-quantity reference. Confirm how the stated quantity corresponds to the mold layout and production cycle in the proposal.
The 50-S6 has a listed length of 3.4 m rather than 3.8 m. Its injection unit and strokes differ, so the comparison must include the same tool and bottle requirement.
Send the bottle drawing, PET or PETG grade, target weight and required accepted output. Request the selected screw option, servo package and verified mold layout in the technical proposal.
Share a drawing link in the message, or send your files to info@isbmmachine.net.
Confirm the approved shot specification, bottle envelope and supplied component package before final selection.
