Key Differences Between Stretch Blow Molding and Other Blow Molding Techniques

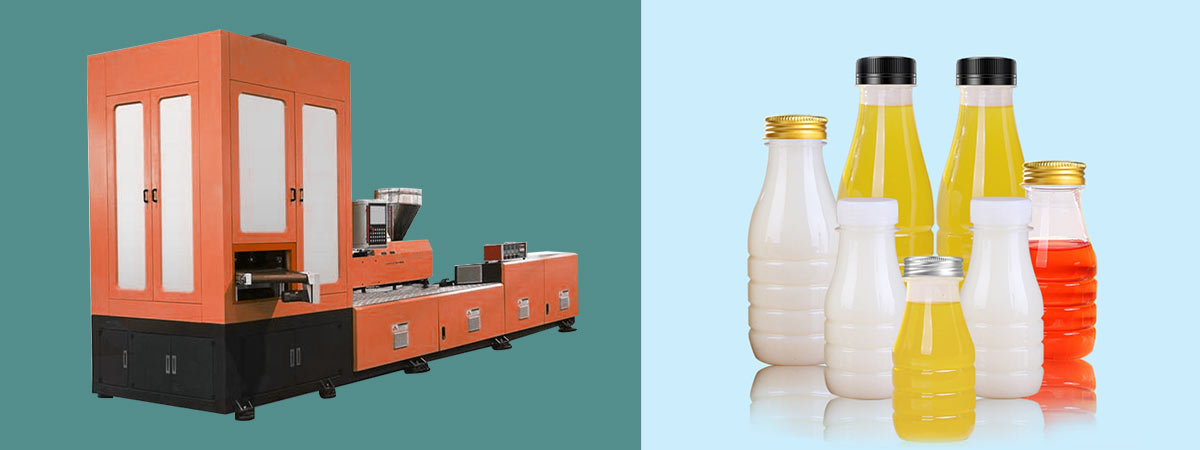

stretch-blow molding

Stretch blow molding differs from other blow molding processes by creating products with superior clarity, mechanical strength, and design precision. Industry data confirms that selecting the right process directly affects product quality, manufacturing cost, and application suitability. For example, extrusion blow molding supports high-volume production with cost efficiency, while ISBM machine in stretch blow molding produces lightweight, durable packaging for food and pharmaceutical sectors. Each process offers unique control over wall thickness and surface finish, impacting the final product’s performance and appearance. Careful process selection ensures the product matches both functional and market requirements.

Key Takeaways

  • Stretch blow molding creates strong, clear, and lightweight bottles by stretching plastic in two directions, making it ideal for PET beverage containers.
  • ISBM machine improves material use and product quality by precisely controlling stretching and wall thickness, reducing waste and energy use.
  • Extrusion blow molding suits large, simple parts with lower cost but less control over thickness and clarity compared to stretch blow molding.
  • Injection blow molding works well for small, detailed containers with good accuracy but is less efficient for large volumes.
  • Choosing the right blow molding process depends on product needs like strength, clarity, shape, and production volume to ensure the best quality and cost-effectiveness.

Blow Molding Processes

Extrusion Blow Molding

Extrusion blow molding stands as one of the most common types of blow molding. In this process, a molten plastic tube, called a pre-form or parison, is extruded vertically. The mold then clamps around the pre-form, and compressed air inflates it against the mold walls. This method works well for producing large, simple hollow parts such as bottles and containers. Manufacturers often choose extrusion blow molding for its lower cost and high production speed. However, this process produces more scrap and offers less control over wall thickness compared to other types of blow molding.

Injection Blow Molding

Injection blow molding uses a two-step process. First, a pre-form is injection molded with precise wall thickness. The pre-form then transfers to a blow mold, where air inflates it to the final shape. This technique provides better dimensional accuracy and is suitable for smaller, more complex plastic parts. Injection blow molding creates products with no bottom weld, which improves strength and appearance. Many industries rely on this process for pharmaceutical bottles and small containers.

Stretch Blow Molding

Stretch blow molding, also known as injection stretch blow molding, modifies the injection blow molding process by adding an axial stretching step. After creating the pre-form, a rod stretches it lengthwise before inflation. This stretching aligns the polymer chains in two directions, resulting in biaxially oriented plastic. The process produces containers with enhanced mechanical strength, clarity, and barrier properties. Stretch blow molding is the preferred choice for manufacturing ISBM bottles for beverages and food packaging.

Comparison Table: Types of Blow Molding

ProcessDefining CharacteristicsOperational PrinciplesTypical Applications and Notes
Extrusion Blow MoldingExtrudes a molten plastic tube (parison), clamped in a mold and inflated.Parison extruded, mold clamps and seals, air inflates parison against mold walls.Large, simple hollow parts; lower cost; less dimensional control; more scrap; no internal stresses.
Injection Blow MoldingUses injection molded pre-form, transferred to blow mold for inflation.Pre-form molded with controlled wall thickness, transferred, inflated to final shape.Better dimensional accuracy; smaller, complex parts; higher capital cost; no bottom weld; one- or two-stage.
Stretch Blow MoldingAdds axial stretching of pre-form before blowing, creating biaxial orientation.Pre-form stretched axially by rod, then inflated, aligning polymer chains.Biaxially oriented plastics; enhanced strength and clarity; common for PET bottles.

ISBM Machine

ISBM machine, or injection stretch blow molding machine, stands out among all types of blow molding equipment. This machine imparts biaxial orientation to the plastic during the stretching phase, which significantly increases mechanical strength, stiffness, and barrier properties. ISBM machine allows precise control over material distribution, resulting in thinner walls and reduced plastic consumption. They produce containers with high dimensional accuracy and uniform wall thickness, which leads to superior product quality.

  • ISBM machine can manufacture a wide range of bottle sizes and unique shapes, including containers with integrated handles or rectangular necks.
  • The machine supports multilayer construction, using post-consumer regrind between virgin plastic layers to meet food packaging standards.
  • Hybrid servo-over-hydraulic systems improve energy efficiency and reduce power spikes.
  • A patented air-regeneration system recovers high-pressure blowing air, lowering energy consumption.
  • ISBM machine creates lightweight, clear, and strong containers, making them ideal for water, soda, and juice bottles.

ISBM machine requires higher initial investment and maintenance costs due to their advanced technology and precision engineering. However, they offer nearly 100% raw material utilization and lower labor costs through automation. Many manufacturers choose ISBM machine for premium products where quality, clarity, and strength are critical.

Stretch Blow Molding vs Other Processes

Production Speed

Production speed plays a crucial role in selecting a blow molding process. Injection blow molding achieves high efficiency, especially with multi-cavity molds. For example, a 28-cavity injection blow molding system can reach cycle times of about 25 seconds, outpacing extrusion blow molding, which operates more slowly due to its continuous extrusion and cooling requirements. Stretch blow molding, particularly when using an ISBM machine, introduces additional steps such as preform heating and stretching. These steps can extend the cycle time compared to injection blow molding, but the process still supports high-volume production for bottles. Factors like screw speed, mold design, and machine type influence throughput and cycle time across all methods.

Process TypeProduction Speed
Injection Blow MoldingFaster (preformed preforms allow quicker cycles)
Extrusion Blow MoldingSlower (requires extrusion of parison, longer cycle)
Stretch Blow MoldingModerate (additional stretching and heating steps)

Material Efficiency

Material efficiency impacts both cost and sustainability. Stretch blow molding, especially with ISBM machine, offers nearly 100% raw material utilization. The process produces minimal scrap because it uses preforms with precise dimensions. Injection stretch blow molding also allows for thinner walls, reducing plastic consumption without sacrificing product strength. In contrast, extrusion blow molding generates more waste due to excess material trimmed from the parison. Injection blow molding falls between the two, with good material control but higher tooling costs.

Tip: ISBM machine can further improve efficiency by using multilayer preforms, incorporating recycled material between layers of virgin plastic.

Wall Thickness & Clarity

Wall thickness and clarity determine the visual appeal and functional reliability of a product. Injection stretch blow molding produces bottles with uniform wall thickness and exceptional clarity. The biaxial stretching aligns plastic molecules, resulting in stable dimensions and smooth surfaces. This process is ideal for applications where clarity and precise volume control are essential, such as beverage packaging. Extrusion blow molding, while cost-effective, struggles with wall thickness uniformity and cannot match the clarity achieved by stretch blow molding. Injection blow molding provides high precision for small, complex parts but does not reach the same clarity levels as injection stretch blow molding.

  • Stretch blow molding:
  • Extrusion blow molding:
    • Suitable for large, complex parts
    • Limited precision in wall thickness and clarity
  • Injection blow molding:
    • Consistent wall thickness for small containers
    • Higher tooling costs

Mechanical Strength

stretch-blow moulding

Mechanical strength is a defining advantage of stretch blow molding. The process uses biaxial stretching, which orients the polymer chains in both hoop and axial directions. This orientation significantly increases tensile strength, impact resistance, and top load capacity. Containers produced by injection stretch blow molding can weigh 10 to 15 percent less than those made by other methods, yet still outperform them in mechanical properties. Extrusion blow molded products depend on processing parameters for strength but generally do not achieve the same level of performance. Injection blow molding offers good strength for small, precise parts but lacks the enhanced properties provided by biaxial orientation.

AspectStretch Blow Molding (ISBM)Extrusion Blow MoldingInjection Blow Molding
Tensile StrengthHigh (due to biaxial orientation)Moderate (depends on process)Good (for small parts)
Impact ResistanceHighModerateGood
Weight Reduction10-15% lighter possibleLess reductionLess reduction

Design Precision

Design precision affects the ability to create complex and reliable products. Injection stretch blow molding, especially with ISBM machine, achieves superior dimensional accuracy and tight tolerances. The use of metal core rods and precise mold control enables the production of bottles with intricate shapes and consistent wall thickness. Extrusion blow molding offers flexibility in shape but struggles with interior diameter tolerances and overall precision. Injection blow molding also provides high accuracy, making it suitable for pharmaceutical and cosmetic packaging. Mold design, cooling systems, and process parameters all contribute to the final product’s dimensional stability.

Material Compatibility

Material compatibility determines which polymers can be used for each process. Stretch blow molding, particularly injection stretch blow molding, primarily uses PET due to its clarity, strength, and pressure resistance. This limitation means the process is less versatile in terms of material selection. Extrusion blow molding supports a wide range of plastics, including PE, PP, ABS, PETG, EVOH, PVC, TPE, TPV, and nylon, making it suitable for diverse applications such as fuel tanks and detergent bottles. Injection blow molding also accommodates various polymers, especially for small, high-precision bottles.

Blow Molding TypeMost Compatible Polymers / ApplicationsKey Characteristics / Polymer Compatibility Reasoning
Stretch Blow Molding (SBM)Primarily PET (Polyethylene Terephthalate)Used mainly for beverage bottles; stretching improves strength and clarity; PET is preferred polymer
Extrusion Blow MoldingVarious polymers suitable for large hollow containersUsed for large items like fuel tanks and detergent bottles; polymer choice varies based on size and durability needs
Injection Blow MoldingPolymers suitable for small, high-precision bottlesUsed for pharmaceuticals and cosmetics; polymer choice depends on precision and detail requirements

Note: Stretch blow molding may not suit specialty polymers or those requiring higher processing temperatures, further narrowing its material range compared to extrusion blow molding.

Advantages and Disadvantages

Stretch Blow Molding Pros & Cons

Stretch blow molding offers several advantages for manufacturers seeking high-quality packaging. The process uses a stretching step that orients the plastic in two directions, which increases impact strength, tensile strength, and transparency. This allows the creation of bottles and containers with thinner walls while maintaining durability. ISBM machine enables scalable production rates, from small batches to over 70,000 bottles per hour. Manufacturers can produce and store preforms separately, giving flexibility and fast changeovers. The process also provides excellent wall thickness distribution, especially for round bottles, and supports lower material usage.

Two-stage stretch blow molding dominates beverage bottle production due to its flexibility and economic benefits. Single-stage systems are preferred for blemish-free surfaces or unique shapes.

However, stretch blow molding has some disadvantages. The process requires high-quality resins like PET, PP, or PVC to avoid defects. Preforms can suffer damage during handling and storage, leading to nicks or scratches. Variability in preform heating may cause inconsistent temperatures, especially in indexing machines. ISBM machine involves higher capital costs, particularly for low-volume production. Manufacturers must carefully select preforms, especially when not custom-made. Technical literature notes that while near-infrared heating can save energy, it adds complexity and cost. New microwave heating technologies may improve efficiency in the future.

Extrusion & Injection Blow Molding Pros & Cons

Extrusion blow molding remains a popular choice for large, simple hollow products such as HVAC ducts and lawn mower seats. The process supports a wide range of polymers and offers lower tooling costs. Manufacturers benefit from high production speeds and the ability to create complex shapes. However, extrusion blow molding often results in uneven wall thickness and more scrap material. Surface defects and rocker bottoms can occur due to cooling or mold design issues.

Injection blow molding excels at producing small bottles, jars, and containers with simple geometries. It delivers consistent wall thickness and good dimensional accuracy. The process suits pharmaceutical and cosmetic packaging. However, it involves higher tooling costs and is less efficient for large-scale production.

ProcessMain AdvantagesMain Disadvantages
Extrusion Blow MoldingVersatile, fast, low tooling cost, complex shapesUneven wall thickness, more scrap, surface defects
Injection Blow MoldingPrecise, good for small products, consistent qualityHigh tooling cost, less suited for large volumes
Stretch Blow Molding (ISBM)Strong, clear, thin-walled, scalable, flexibleHigh capital cost, resin quality critical, handling issues

Preventive measures such as operator training, mold cleaning, and cycle parameter adjustments help reduce common defects across all blow molding processes.

Choosing the Right Process

Application Suitability

Selecting the optimal blow molding process depends on the intended application and the specific requirements of the product. Stretch blow molding stands out for manufacturing PET bottles, especially in the beverage industry. This process creates containers with high clarity and mechanical strength, making it ideal for products that demand both visual appeal and durability. Industries such as packaging, automotive, medical devices, and consumer goods rely on blow molding for a wide range of applications. The following table highlights common products and their suitability for each industry:

Product/IndustryCommon Products/PartsSuitability and Application Evidence
PackagingBottles, jars, containers for food, beverages, cosmetics, medicineLightweight, shatterproof, cost-effective bottles with precise wall thickness control. PET use improves transparency and performance.
AutomotiveFuel tanks, bumpers, fluid containers, ductingSeamless, leak-proof parts with complex shapes and integrated features.
Medical DevicesDisposable medical equipment, IV bags, tubingSterile, complex-shaped devices with ports and valves.
Consumer ProductsToys, sporting goods, household itemsHollow, intricate designs with structural integrity.
Industrial ProductsDrums, tanks, large containersDurable, lightweight containers with custom features.
Playground EquipmentOutdoor play structuresWeather-resistant, durable equipment with textured surfaces.

When to Use Stretch Blow Molding?

Manufacturers choose stretch blow molding when the product requires superior clarity, strength, and lightweight construction. This process is the industry standard for producing PET bottles, including two-liter soda bottles, due to its ability to align polymer chains and enhance physical properties. ISBM machine enables high-speed production and supports complex shapes, making it suitable for food packaging, cosmetics, and other applications where appearance and performance matter. Companies benefit from the two-stage process, which allows preforms to be shipped and stored before final molding, reducing logistics costs. Stretch blow molding excels in high-volume production environments, especially when the product must meet strict quality standards.

  • Stretch blow molding is ideal for:
    • Beverage bottles requiring clarity and strength
    • Products with complex shapes or thin walls
    • High-output manufacturing lines
    • Applications where lightweight, durable packaging is essential

Key Selection Factors

Several factors influence the decision to use stretch blow molding or another blow molding technique. Product requirements such as shape, clarity, and mechanical strength play a central role. Stretch blow molding, especially with an ISBM machine, produces bottles with excellent clarity and durability, making it the preferred choice for products like water bottles and two-liter soda bottles. Production volume and cost considerations also impact process selection. Blow molding offers cost efficiency for large quantities of simple hollow products, while ISBM machine provides precision and scalability for demanding applications. Manufacturers must evaluate design complexity, production speed, mold cavity count, and budget to ensure the chosen process aligns with business goals and product specifications.

Tip: When the product demands high clarity, lightweight construction, and superior strength, stretch blow molding with an ISBM machine delivers optimal results.

Conclusion

stretch-blow-molding-process

Selecting the right blow molding process depends on product needs and business goals. The table below highlights the main differences:

ProcessKey StepsTypical Use CasesUnique Features
Extrusion Blow MoldingParison extrusion, blowing, cooling, ejectionLarge HDPE, LDPE, PP bottlesSimple shapes, moderate energy use
Injection Blow MoldingInjection molding, blowing, ejectionSmall to medium bottles, pharmaceuticalsTight neck tolerances, no stretching
Injection Stretch Blow Molding (ISBM machine)Injection molding, stretching, blowing, cooling, ejectionPET bottles for drinks, oils, personal careMechanical stretching, enhanced barrier

For high clarity, strength, and lightweight PET bottles, stretch blow molding with an ISBM machine offers the best results. Manufacturers should match process features to application requirements for optimal performance.

FAQ

What Products Benefit Most from Stretch Blow Molding?

Stretch blow molding works best for PET bottles that require high clarity and strength. Beverage, food, and personal care industries often select this process. ISBM machine produces lightweight, durable containers with precise shapes.

How Does an ISBM Machine Improve Material Efficiency?

ISBM machine uses preforms with accurate dimensions. This approach reduces scrap and ensures almost all raw material becomes part of the final product. Manufacturers save costs and support sustainability goals.

Can Stretch Blow Molding Use Materials Other than PET?

Most stretch blow molding applications use PET. Some ISBM machines can process other resins like PP or PVC. However, PET remains the preferred choice due to its clarity and strength.

What Are the Main Maintenance Needs for an ISBM Machine?

Operators must regularly clean molds, check heating systems, and inspect moving parts. Preventive maintenance helps avoid downtime and ensures consistent product quality. Proper training improves machine reliability.

Why Choose Stretch Blow Molding Over Extrusion Blow Molding?

Stretch blow molding creates bottles with better clarity, thinner walls, and higher strength. ISBM machine offers precise control over wall thickness and shape. Manufacturers select this process for premium packaging and demanding applications.
