The PET preforms manufacturing process plays a vital role in meeting the global demand for lightweight and sustainable packaging.
- The market expects to reach USD 25 billion by 2033, fueled by the beverage industry and a shift to bio-based materials.
- Advances in technology, such as IoT and AI, improve product quality and reduce operational costs.
- High-speed machines and lightweighting strategies boost efficiency and support sustainability goals.
| Impact Area | Description |
|---|---|
| Product Quality | IoT and AI integration enhances consistency and quality. |
| Cost Reduction | High-speed machines lower energy use and operational expenses. |
| Production Speed | Increased machine output raises efficiency and capacity. |
Key Takeaways
- Understanding the importance of resin quality is crucial. High-quality PET resin ensures clarity and strength in preforms.
- Proper drying of PET resin prevents defects. Aim for moisture levels below 30 ppm to maintain preform integrity.
- Optimizing injection molding parameters enhances production efficiency. Adjust settings to balance speed and quality for better output.
- Implementing strict quality control measures helps catch defects early. Use visual checks and mechanical testing to ensure high standards.
- Maintaining optimal storage conditions preserves preform quality. Store in cool, dry areas to prevent contamination and damage.
Pet Preforms Manufacturing Process
What Are PET Preforms?
PET preforms serve as the essential starting point in the PET preforms manufacturing process. Manufacturers create these small, test-tube-shaped pieces from polyethylene terephthalate, or PET. The pet preform acts as an intermediate product, later transformed into bottles and containers through stretch blow molding. This process allows for efficient mass production and consistent quality.
PET preforms must meet strict requirements to perform well in bottle production. They need stretchability, transparency, consistent wall thickness, and precise dimensions. These properties ensure that the final bottles maintain strength, clarity, and uniformity. The injection molding system shapes the preforms, and the technical characteristics of the machines and molds directly affect production speed, quality, and cost. After molding, manufacturers heat and blow the preforms into various bottle shapes, maintaining the necessary performance standards.
Note: PET preforms play a crucial role in the packaging industry, supporting the production of bottles for beverages, personal care, and household products.
Main Stages
The PET preforms manufacturing process consists of several key stages. Each stage impacts the quality and efficiency of preform production.
| Stage | Description / Significance |
|---|---|
| Material Selection and Preparation | PET resin is selected and dried to remove moisture, preventing defects like cloudiness and brittleness. |
| Injection Molding Process | Heated PET resin is injected into a mold, forming preforms with precise shape, weight, and wall thickness. |
| Cooling and Solidification | Uniform cooling solidifies the preform, ensuring proper dimensions and strength. |
| Ejection and Quality Control | The preform is ejected from the mold, then checked for dimensions, weight, and appearance. |
| Storage and Transport | Preforms are stored or transported for further processing in stretch blow molding. |
| Stretch Blow Molding | Preforms are reheated and blown into final bottle shapes using pressurized air. |
Each stage in the PET preforms manufacturing process ensures that the PET preform meets industry standards. Proper resin preparation prevents defects. Accurate injection molding controls shape and weight. Uniform cooling avoids dimensional errors. Quality control checks catch any issues before preforms move to storage or further processing. These steps guarantee that preforms and final bottles meet customer expectations for performance and appearance.
Raw Material Preparation
Resin Quality
Resin quality forms the foundation of every pet preform. Manufacturers select PET resin based on its source and type. Virgin resin often provides better mechanical properties, while recycled PET may reduce clarity and impact strength. Moisture level in the resin also affects the final preform. The recommended moisture content for PET is between 0.02% and 0.05%. High moisture can cause brittleness and weak mechanical properties. The table below shows how different factors influence preform quality:
| Factor | Effect on Preform Quality |
|---|---|
| Raw Material Source | Poor-quality raw material can lead to defects such as low clarity, brittleness, and weak mechanical properties. |
| Material Type | Virgin resin tends to offer better mechanical properties, while recycled PET (rPET) might have reduced clarity and lower impact strength. |
| Moisture Level | The recommended moisture level for PET is usually around 0.02% to 0.05%. High moisture can negatively affect the mechanical properties. |
Drying
Drying PET resin is a critical step before processing. PET resin can absorb up to 0.6% water by weight in atmospheric conditions. Manufacturers aim for less than 30 ppm moisture content before molding. Improper drying leads to hydrolysis during heating, which reduces strength and visual appeal. Lower intrinsic viscosity affects the rigidity and integrity of the polymer. Proper drying ensures that each pet preform meets strict quality standards.
- Recommended moisture content for PET resin before processing is less than 30 ppm.
- PET resin can contain up to 0.6% water by weight in atmospheric conditions.
- Improper drying leads to hydrolysis of PET when heated, reducing its strength and aesthetic qualities.
- Higher moisture content results in lower intrinsic viscosity, affecting the rigidity and integrity of the polymer.
Blending Consistency
Consistent blending of PET resin is essential for uniform preforms. Manufacturers use techniques such as melt blending, solution blending, latex mixing, and copolymerization. The screw design in the molding machine ensures uniform heating and mixing. This process improves the conveying capacity and creates a consistent blend. Uniformity in the resin mixture helps maintain the quality and appearance of every pet preform.
Contamination Control
Contamination can cause serious defects in pet preforms. Common sources include dust, dirt, and degraded resin. Black specks, bubbles, and haze often result from contaminated resin or improper drying. The table below outlines typical defects, causes, and corrective actions:
| Defect | Detailed Description | Possible Causes | Corrective Actions |
|---|---|---|---|
| Black Specks | Small black, brown, or dark-colored spots embedded within the plastic. | Contaminated resin, material degradation | Inspect material, purge system, regular cleaning |
| Bubbles / Voids | Spherical or elongated air pockets trapped inside the preform. | Improper drying | Verify drying, increase back pressure |
| Haze / Cloudiness | The preform lacks its characteristic crystal clarity. | Moisture | Verify drying, adjust decompression |
Manufacturers prevent contamination by sealing raw material bags, purging systems, and cleaning equipment regularly. These steps help maintain high quality in pet preforms and reduce defect rates.
Injection Molding
Machine Selection
Selecting the right injection molding machine is a critical step in the PET preforms manufacturing process. The choice of equipment, including the preform PET bottle machine, directly affects production efficiency, product quality, and operational costs. Manufacturers evaluate several criteria before making a decision.
| Criteria | Description |
|---|---|
| Machine Size and Capacity | Should match the volume and size of the parts to be produced. Larger machines for bigger parts. |
| Cycle Time | Affects production efficiency; faster cycle times increase productivity. |
| Energy Consumption | Important for long-term cost savings; machines should minimize energy use without sacrificing performance. |
| Ease of Maintenance | Machines should be easy to maintain to prevent downtime. |
| Support and Training | Availability of technical support and training is crucial for effective machine operation. |
A well-matched injection molding machine ensures optimal use of resources and consistent product quality. The preform PET bottle machine must deliver a solid and uniform clamping force to prevent mold deformation or dislocation. Advanced control systems and process monitoring capabilities allow operators to manage parameters such as temperature, pressure, speed, and injection volume with precision. These features help maintain efficiency and stability throughout the production cycle.
A properly selected injection molding machine affects productivity by determining the number of preforms produced in a given time. It also influences consistency in product quality, material efficiency, and overall cost-effectiveness.
Mold Design
Mold design plays a vital role in the quality and consistency of PET preforms. The design includes the gate type, cavity layout, and cooling channels. Each element impacts how the molten pet resin fills the mold and forms the preform.
- The gate design influences the filling speed, pressure, and material distribution in the mold cavity.
- Different gate types, such as edge, submarine, and hot-runner gates, offer unique advantages and challenges for production efficiency and preform performance.
- A hot runner system maintains a consistent temperature, ensuring uniform filling of all preform cavities. This reduces defects like uneven wall thickness and improves overall quality.
- Proper gate design is essential for achieving uniform filling and minimizing stress in the preform, which directly affects the final product.
Manufacturers must optimize the mold and gate design to ensure that each preform meets strict dimensional and mechanical standards. This attention to detail helps prevent common defects and supports high-volume, high-quality production.
Temperature Control
Temperature control is essential during the injection molding of PET preforms. The process requires precise management of heat to ensure the pet resin flows smoothly and forms a strong, clear preform.
| Temperature Range (°C) | Purpose |
|---|---|
| 110-185 | Ensures easy flow and uniformity of PET into the mold, while maintaining preform shape and quality. |
Operators must keep the preform temperature close to the glass transition temperature (Tg) for optimal orientation. Stretching the PET material at the right temperature enhances its crystalline structure, which improves clarity and strength. Proper temperature profiles help achieve uniform material distribution and prevent defects.
- Temperature control is crucial for achieving molecular alignment during the stretching process.
- Maintaining temperature within a narrow range ensures the pet retains its shape and avoids defects.
- Consistent temperature management leads to high-quality preforms with excellent clarity and mechanical properties.
The biaxial orientation process, which stretches the heated pet preform in two directions, aligns the molecular chains. This alignment increases the strength, clarity, and gas barrier properties of the final bottle.
Cycle Time
Cycle time refers to the total time required to complete one injection molding cycle, from closing the mold to ejecting the finished preform. Optimizing cycle time is essential for maximizing production output and minimizing defect rates.
The study of injection molding parameters shows that optimizing cycle time can enhance production output and reduce defect rates in PET preform manufacturing. Researchers found that adjusting cycle time and other settings led to a 21% reduction in defect quantity. This direct correlation highlights the importance of careful process control.
Shorter cycle times increase the number of preforms produced per hour, improving efficiency. However, if the cycle is too short, it may cause incomplete filling or cooling, leading to defects. Manufacturers must balance speed and quality to achieve the best results.
ISBM Machine Role

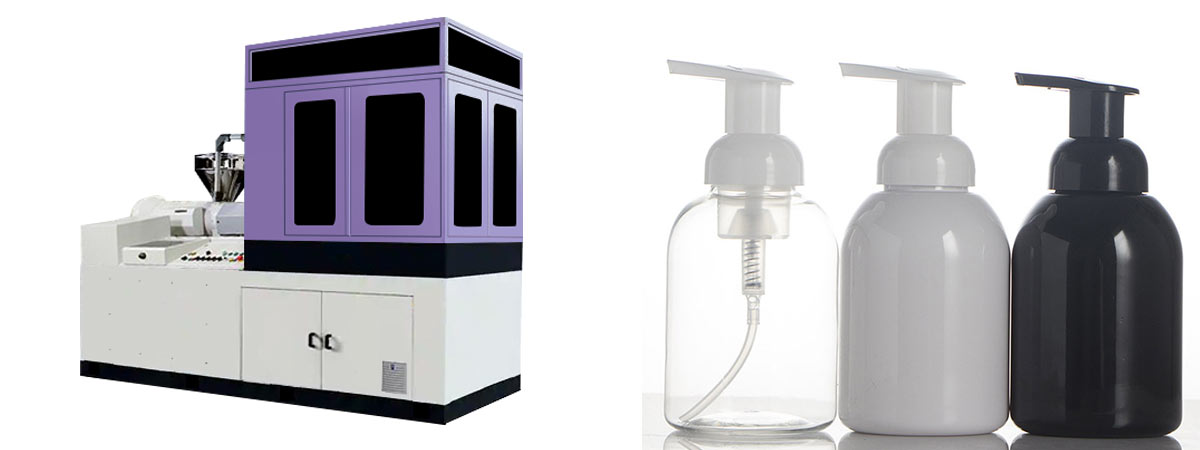

Injection Stretch Blow Molding (ISBM) machine plays a unique role in the pet preform process. The machine combines injection molding and blow molding in a single system, streamlining production and improving efficiency.
| Stage | Description |
|---|---|
| Injection Molding | Creates a preform with precise dimensions. |
| Stretching | Axially and radially stretches the preform to enhance material strength. |
| Blow Molding | Inflates the preform within a mold to form the final bottle shape. |
ISBM machine offers several advantages over conventional injection molding machines:
- ISBM combines injection and blow molding, enhancing efficiency.
- The process results in lower production costs compared to traditional blow molding techniques.
- ISBM reduces material waste and labor costs.
The ISBM process produces high-clarity, lightweight, and durable bottles. This method improves production efficiency and enhances the properties of the final product. Manufacturers often choose ISBM systems for their ability to deliver consistent, high-quality pet bottles at a lower cost.
Cooling and Ejection
Uniform Cooling
Uniform cooling is essential for producing high-quality PET preforms. The cooling rate directly affects the crystallinity of PET, which determines both transparency and mechanical strength. Rapid cooling keeps crystallinity low, resulting in clear and transparent preforms. Slow cooling increases crystallinity, which strengthens the material but can create a frosted look. For example, pet cooled quickly below 120°C shows crystallinity under 20%, while slow cooling at 140–160°C raises crystallinity above 30%. Manufacturers often cool the outer walls of the preform quickly for clarity, while cooling the bottom more slowly to boost impact resistance. Optimizing the bottom crystallinity to 30–32% can increase impact strength by up to 40%. This careful control of cooling ensures that each PET preform meets the demands for both appearance and durability.
Ejection Methods
Reliable ejection methods help maintain the shape and surface quality of PET preforms. Precision mold engineering, including balanced cavity design and proper venting, distributes pet material evenly and prevents deformation. Synchronizing the cooling system with the ejection mechanism ensures that preforms keep their shape after leaving the mold. This approach reduces post-ejection warpage by 31% in thin-walled bottles. Advanced monitoring systems, such as infrared thermography and laser micrometers, provide real-time feedback. These tools allow operators to make quick adjustments and prevent defects before packaging.
Defect Prevention
Defects during cooling and ejection can affect the performance of PET preforms. Warping often results from uneven shrinkage during cooling. To prevent this, manufacturers use gradual cooling, lower mold temperatures, and materials with less shrinkage. Redesigning the mold for uniform wall thickness also helps. Another common issue is difficulty demolding preforms, which can occur due to rough mold surfaces or poor ejection design. The table below summarizes common defects and solutions:
| Common Defect | Causes | Preventive Measures |
|---|---|---|
| Warping | Uneven cooling and shrinkage | Gradual cooling, lower mold temperature, uniform wall thickness |
| Difficulty Demolding Preforms | High mold roughness, small draft angle, poor ejection mechanism | Polish mold, increase draft angle (1°–2°), optimize ejection, use food-safe release agent |
By focusing on these preventive measures, manufacturers can reduce defects and improve the overall quality of pet preforms.
Quality Inspection
Visual Checks
Visual inspection forms the first line of defense in maintaining PET preform quality. Operators use high-definition imaging technology to analyze each preform’s appearance. These systems compare real-time images with standard models to spot flaws. AI algorithms also play a role by detecting defects and removing faulty products quickly. This combination of technology helps catch most visible issues before the preforms move to the next stage.
| Inspection Technology | Description |
|---|---|
| High-definition imaging technology | Analyzes object images and obtains various parameters for real-time comparison with standard products. |
| AI algorithms | Utilizes deep learning to detect defects and remove unqualified products through high-speed air valves. |
Tip: Visual checks can detect up to 80% of surface defects, making them essential for early quality control.
Dimensional Accuracy
Dimensional accuracy ensures that each PET preform fits perfectly during bottle production. Operators use digital calipers to measure key dimensions like thread diameter, inner diameter, and neck height. Each measurement must fall within strict tolerances to prevent problems during capping or filling.
| Dimension | Tool | Common Tolerance | Consequence of Failure |
|---|---|---|---|
| T (Thread Diameter) | Digital Calipers | ±0.20 mm | Capping issues, stripped threads. |
| E (Inner Diameter) | Digital Calipers | ±0.20 mm | Filling nozzle issues, poor seal. |
| H (Neck Height) | Digital Calipers | ±0.25 mm | Tamper-band problems, incorrect capping. |
Operators also check wall thickness using a specialized gauge. They measure at several points around the preform to ensure consistency. Minimal variation in wall thickness signals high quality.
- Use a wall thickness gauge.
- Measure at one point, then rotate and check at 90-degree intervals.
- Consistent readings show good quality.
Mechanical Testing
Mechanical testing confirms that PET preforms can handle the stresses of production and use. Three main tests are common:
| Test Type | Significance | Industry Benchmark Example |
|---|---|---|
| Tensile Strength | Evaluates the ability to withstand pulling forces without breaking. | Must meet specific strength requirements to avoid failure during blow molding. |
| Elongation | Measures the ability to stretch before breaking, indicating flexibility. | Should meet minimum elongation percentages to ensure durability. |
| Impact Resistance | Assesses the material’s ability to absorb energy during sudden impacts. | Must pass specific impact tests to ensure safety during handling and transport. |
These tests help ensure that each preform meets industry standards for durability and performance.
Common Defects
Quality inspection also identifies frequent defects in PET preforms. Each defect has a root cause that operators must address to maintain high standards.
| Defect | Root Cause |
|---|---|
| Neck Support Ring | Inconsistent diameter or thickness leading to improper gripping, causing wobbling or jams. |
| Eccentricity | Uneven wall thickness causing differential heating, leading to weak spots in the final product. |
| Material IV (Intrinsic Viscosity) | Variability in polymer chain length affecting heating and blowing consistency, leading to defects. |
Operators use inspection data to adjust the process and reduce defect rates. This focus on quality helps deliver reliable pet preforms for further processing.
Packaging and Storage
Handling
Proper handling of PET preforms protects them from scratches, dents, and contamination. Workers must use clean gloves and avoid direct contact with the preforms. They should lift and move preforms gently to prevent surface damage. Training handlers reduces the risk of accidental drops or rough treatment. Facilities often use automated systems to move preforms, which helps maintain consistent handling quality. Good handling practices also include keeping the work area clean and organized. These steps help ensure that preforms remain in top condition before packaging.
- Use clean gloves to prevent contamination.
- Move preforms gently to avoid scratches.
- Train handlers to recognize and prevent damage.
- Keep the workspace clean and free of debris.
Packaging Materials
Selecting the right packaging materials is essential for protecting PET preforms during storage and transport. Manufacturers often use sturdy cartons, plastic bags, or shrink wrap to shield preforms from dust and physical impact. The packaging must fit the preforms snugly to prevent movement inside the box. Some facilities use custom trays or inserts to keep each preform separated. This approach reduces the risk of scratches and deformation. Packaging should also be easy to handle and stack, supporting efficient warehouse operations. Labels on each package provide important information about batch numbers and production dates.
| Packaging Material | Purpose | Benefit |
|---|---|---|
| Cartons | Outer protection | Shields from impact |
| Plastic Bags | Dust prevention | Maintains cleanliness |
| Trays/Inserts | Separation and stability | Prevents scratches and dents |
| Shrink Wrap | Secures multiple packages | Eases handling and transport |
Storage Conditions
Maintaining optimal storage conditions preserves the quality of PET preforms. Facilities store preforms in cool, dry areas with temperatures between 18 and 22°C (64–72°F) and humidity below 50%. Clean storage spaces prevent dust and debris from contaminating the preforms. Workers stack preforms in a stable manner and avoid over-stacking to prevent deformation. Opaque containers or shaded areas protect preforms from UV light, which can degrade the material. Facilities use a first-in, first-out inventory system to ensure older preforms are used first, minimizing quality loss over time.
Tip: Consistent storage conditions help prevent damage and maintain the integrity of PET preforms throughout the packaging process.
Challenges and Solutions
Material Issues
Manufacturers often face material-related challenges in PET preform production. Inconsistent preform weight and dimensions can lead to defects during injection blow molding. Defects such as bubbles, streaks, or haze may affect clarity and strength. Difficulty in maintaining the required temperature and pressure sometimes causes warpage. To address these issues, companies use advanced quality control measures and real-time monitoring. They select high-quality raw materials and enforce strict process control to minimize defects. Optimizing injection molding parameters helps prevent warpage and ensures even material distribution. Proper material handling and storage reduce contamination and moisture absorption. Automation and robotics also enhance efficiency and support environmental protection by reducing waste.
- Inconsistent preform weight and dimensions
- Bubbles, streaks, or haze affecting clarity
- Warpage from poor temperature or pressure control
- Solutions: Real-time monitoring, strict process control, automation, and careful material storage
Process Problems
Process-related problems can disrupt PET preform production. Common issues include improper drying, machine setting mistakes, and mold design flaws. The table below summarizes frequent problems and their solutions:
| Common Issue | Reason | Solution |
|---|---|---|
| Material Problems | PET resin not dry enough | Dry PET resin fully before use |
| Machine Setting Mistakes | Wrong temperatures or pressures | Control temperatures: 260–290°C |
| Mold Design Flaws | Poor gate placement or cooling | Focus on gate placement, cooling, and vents |
| Machine and Human Errors | Old machines or worker mistakes | Check machines, replace worn parts, clean molds |
| Workshop Conditions | High humidity or power issues | Train workers on settings and safety |
Manufacturers also address specific defects such as crystallizing whitening by using resin dehumidifying, and black dots by improving screw design. These steps help maintain product quality and lower environmental impact.
Equipment and ISBM Machine
Equipment reliability plays a key role in PET preform manufacturing. Old or poorly maintained machines can cause frequent breakdowns and defects. ISBM machine, which combine injection and blow molding, requires regular checks and cleaning to operate efficiently. Automation reduces manual labor and supports customisation of the preforms, allowing for flexible production lines. By investing in modern equipment and training staff, companies achieve higher efficiency and lower environmental impact. Customisation also enables manufacturers to meet unique customer needs while supporting environmental goals.
Quality Control
Effective quality control ensures that only high-quality PET preforms move forward in the production process. Companies use advanced imaging and analytical algorithms for early defect detection. These systems automate defect analysis, reducing human error and improving efficiency. Integrated quality control systems monitor production parameters in real time, allowing for immediate corrections. The profile projector checks shape and tolerance accuracy, ensuring compliance with industry standards. Real-time feedback mechanisms help maintain product quality and minimize downtime. A perfect bottle starts with a perfect preform, so continuous improvement in quality control remains essential for environmental responsibility and lower environmental impact.
Conclusion
The PET preforms manufacturing process relies on several key stages that shape product quality, efficiency, and cost.
- Single-stage systems and injection molding technology dominate the market, driving accuracy and high-volume output.
- Multiple cavity configurations optimize energy use and mass production.
To improve results, manufacturers should monitor production, schedule regular maintenance, and use advanced AI for defect detection.Continuous improvement in safety, machine setup, and material preparation ensures reliable performance and supports industry standards.
FAQ
What Is the Most Critical Factor in PET Preform Quality?
Resin quality stands as the most critical factor. High-quality resin ensures clarity, strength, and consistency. Manufacturers must control moisture and contamination to prevent defects. Proper drying and blending also play key roles in achieving reliable preforms.
How Does Injection Molding Affect Preform Properties?
Injection molding determines the shape, wall thickness, and strength of each preform. Machine settings, mold design, and temperature control all influence the final product. Optimized parameters help prevent defects and ensure uniformity.
Why Is Uniform Cooling Important in PET Preform Production?
Uniform cooling prevents warping and uneven crystallinity. Rapid, even cooling keeps preforms clear and strong. Manufacturers use precise cooling systems to maintain product quality and reduce defects.
What Are Common Defects Found During Quality Inspection?
Operators often find defects such as black specks, bubbles, haze, and warping. These issues usually result from contamination, improper drying, or uneven cooling. Early detection helps maintain high standards.
How Should PET Preforms Be Stored to Maintain Quality?
Facilities store PET preforms in cool, dry, and clean areas. They avoid direct sunlight and high humidity. Proper packaging and careful handling prevent scratches, deformation, and contamination.
