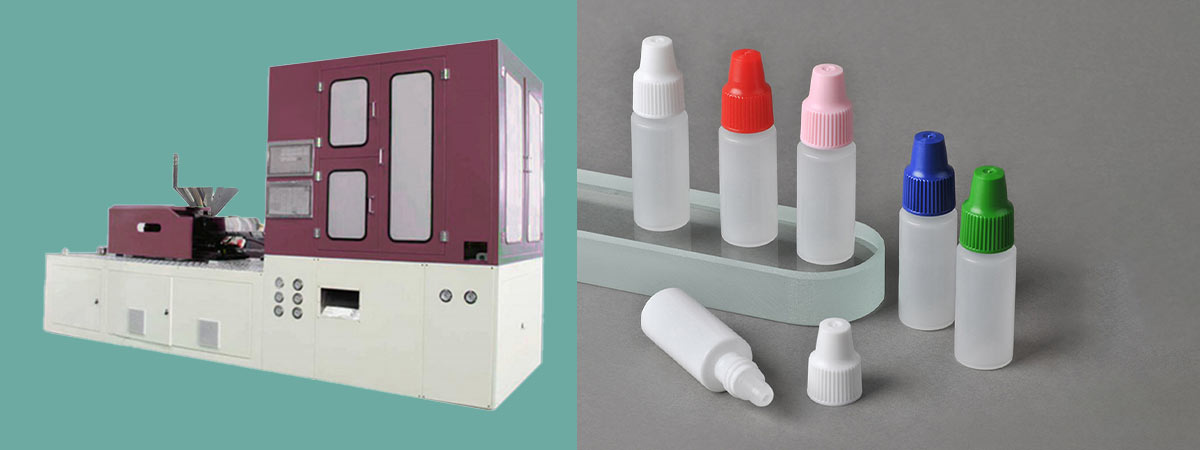

A plastic bottle molding machine relies on several key components to achieve efficient plastic bottle production. These components include the extruder, parison die, mold, clamping system, blow pin, heating and cooling systems, control system, and material handling parts. High quality bottle blow molding machines and pet blow molding machines both use pumps, motors, gearboxes, PLCs, and servo drives for precise blowing. Safety features like emergency stop buttons and pressure relief systems protect operators during blowing and pet blowing machine operation. The bottle blow molding machine uses these components to create bottles with consistent shapes and sizes. Regular maintenance of each pet blowing machine ensures safe blowing and reliable bottle output.
Emergency stop buttons, machine guarding, pressure relief systems
Material Handling
Material handling systems
Key Takeaways
Plastic bottle molding machinerelies on key parts like the extruder, mold, clamping system, blow pin, heating and cooling systems, and control units to produce high-quality bottles efficiently.
The extruder melts and shapes plastic into a hollow tube called a parison, which is then inflated inside the mold to form the bottle’s shape and size.
Precise heating and cooling systems ensure even plastic flow and solidification, reducing defects and speeding up production cycles.
Advanced control systems automate the process, monitor quality in real time, and help reduce waste and errors for consistent bottle output.
Regular maintenance of all components, including molds and clamping systems, keeps machines running safely and reliably, improving product quality and machine lifespan.
Key Components
A bottle blow molding machine relies on several essential components to transform raw plastic into finished bottles. Each part plays a unique role in the blowing process, ensuring efficiency, safety, and consistent product quality. The following sections introduce the main components found in both extrusion blow molding machines and pet blowing machines.
Extruder
The extruder serves as the heart of the extrusion blow molding machine. It melts plastic resin pellets using a heated barrel and a rotating screw. This mechanism creates a uniform molten plastic mass with the right viscosity for blowing. The extruder then pushes this molten plastic through a nozzle, forming a hollow tube called a parison. Operators can adjust the size and thickness of the parison to match specific bottle requirements. The extruder also mixes colorants or additional layers into the plastic, allowing for custom bottle designs. In the blowing process, the extruder ensures the plastic is properly melted and homogenized, which is critical for the injection molding process and the overall quality of the bottle.
Note: The extruder must maintain consistent temperature and mixing to prevent defects in the blowing process. Regular cleaning and inspection help avoid contamination and mechanical failure.
Key Properties and Uses in Bottle Molding Applications
High-density Polyethylene (HDPE)
Linear molecular structure, high specific strength, dominant in market share for polyethylene bottles.
Low-density Polyethylene (LDPE)
Branched polymer chain, lower tensile strength and barrier properties, better impact strength and resilience than HDPE.
Polyethylene Terephthalate (PET)
Biaxially oriented PET has low CO2 permeability, ideal for carbonated beverage bottles; requires drying before extrusion due to water affinity.
Polypropylene (PP)
Wide range of properties, high crystallinity, tensile strength comparable to HDPE, heat resistant, but susceptible to UV degradation.
Polyvinyl Chloride (PVC)
Versatile with additives, can be rigid or flexible, better clarity than PP, but releases harmful pollutants during processing.
Nylon (Polyamide, PA)
High toughness, impact strength, solvent resistance, used mainly in automotive parts and fuel tanks rather than bottles.
Polycarbonate (PC)
High impact strength, heat resistance, transparency, good water barrier, used in bottle production.
Copolyester
High thermal oxidation stability, flame resistance, chemical inertness, excellent clarity, suitable for thin-walled containers.
Cyclic Olefin Copolymer (COC)
Amorphous polymer with properties similar to PVC without negatives, low water vapor permeability, used in food and medicine bottles.
Acrylonitrile Butadiene Styrene (ABS)
Good hardness and rigidity, good surface finish for consumer goods, poor UV resistance, moderate chemical resistance.
Parison Die
The parison die shapes the molten plastic into a uniform tube, which is essential for the blowing process. This component controls the size, thickness, and shape of the parison, directly affecting the quality and consistency of the final bottle. A smooth inner surface and precise sizing are crucial for the die. Variations in die gap, temperature, or pressure can cause uneven parison thickness, leading to defects such as curling or weak bottle walls. High processing temperatures may cause the parison to droop, while low temperatures can result in surface defects. Operators often need to adjust the die to maintain uniformity, but modern dies with spring-loaded fasteners can automatically correct flow variations, reducing manual intervention and improving consistency in the blowing process.
The parison die ensures that each bottle meets minimum thickness requirements, especially in critical areas like the bottom corner.
Proper die adjustment prevents costly issues such as regrinding, sorting, or customer returns due to out-of-spec bottles.
In the injection molding process, the parison die’s precision supports high-quality production in both extrusion blow molding machines and pet blowing machines.
Medium to high volume production; consumer electronics, automotive components; regular maintenance needed
Class 103
Up to 100,000
Quality steel, less hardened than Class 101
Lower volume production; prototypes, special projects; simpler designs
Class 104
10,000 to 25,000
Softer materials like aluminum or mild steel
Low volume, prototyping, limited runs; cost-effective but less durable
Class 105
Under 500
Cast metal or epoxy
Extremely low volume or one-off projects; minimal maintenance
Clamping System
The clamping system holds the mold halves together during the blowing process. This component ensures safety and precision by using mechanical, hydraulic, or electrical protections to prevent injury from the high gripping forces. The clamping unit of plastic molding machine applies enough force to keep the mold closed under high injection pressure, preventing leaks and ensuring the mold remains secure. Modern clamping systems use sensors and feedback controls to monitor force, vibration, and temperature, providing early warnings to avoid accidents or equipment damage. These systems distribute force evenly, minimizing platen deflection and maintaining parallelism for consistent bottle quality.
Hydraulic clamping system: Uses oil pressure to close the mold, with adjustable clamp force to prevent leakage.
Mechanical clamping system: Employs a toggle mechanism for high-speed operation, offering economical performance and self-locking features.
Tip: Regular maintenance of the clamping system in pet blowing machines reduces downtime and ensures safe, precise operation throughout the injection molding process.
Blow Pin
The blow pin plays a critical role in the blowing process. It inserts into the molten parison inside the mold and delivers compressed air, inflating the plastic to fill the mold cavity. This step forms the hollow shape of the bottle. The blow pin also helps cool the plastic from the inside, promoting even solidification and preventing warping. In some cases, the blow pin assists in trimming excess plastic, reducing the need for additional finishing work. The quality of the blow pin affects the consistency, efficiency, and cost-effectiveness of the blowing process in both extrusion blow molding machines and pet blowing machines.
The blow pin inflates the parison to match the mold cavity, creating the bottle’s final shape.
It aids in cooling the plastic, ensuring even wall thickness and preventing defects.
Some blow pins help trim excess material, streamlining the process.
High-quality blow pins improve the reliability and output of the bottle blow molding machine.
Note: Proper maintenance of the blow pin and related components is essential for optimal performance in the injection molding process and the blowing process, especially in pet blowing machines.
Heating and Cooling Systems
Heating System
A blow molding machine relies on a precise heating system to prepare plastic preforms for shaping. The pet blowing machine uses near-infrared (NIR) heating technology, which heats preforms faster than conventional infrared systems. NIR penetrates PET material, creating a uniform temperature between the inner and outer walls. This process saves energy and reduces heating time, especially when working with recycled PET (rPET). The heating system in a pet blowing machine often includes infrared pre-heaters with self-rotating preforms. This rotation ensures even heat distribution, which prevents irregular bottle shapes and uneven wall thickness.
Operators control the voltage of infrared lamps using a PLC, allowing accurate temperature adjustments. Rotary heating and conveying systems maintain a constant temperature, usually around 120°C, which minimizes the influence of external conditions. Servo motor-driven drying tunnels provide stable, low-noise operation and uniform heating. Far-infrared heating lamps with rotary reheating units further improve temperature consistency. These advanced systems use multi-point temperature detectors and neural network-like modeling to automatically adjust heating power. Real-time temperature monitoring reduces defects and waste, supporting industry standards.
Precise mold temperature control ensures uniform material flow and minimizes defects such as warping or surface imperfections. Adaptive intelligent controllers use real-time data to adjust heating and cooling, improving efficiency and profitability.
Cooling System
The cooling system in a pet blowing machine plays a vital role in maintaining product quality and production speed. Chilled water cooling is the most effective method, regulating the temperature of the mold base, chamber, and cooling channels. The optimal chilled water temperature ranges from 10°C to 12°C, with pressure between 0.3 to 0.5 Mpa and a flow rate of about 40L/min. Water-cooling systems circulate water through pipes or channels, absorbing and dissipating heat via cooling towers or heat exchangers. Air-cooling systems use fans to blow air over hot components, offering simplicity and low maintenance but less efficiency for high heat loads.
Thermal pins, which act as small heat pipe heat exchangers, provide uniform cooling in areas that water cannot reach. These pins prevent defects caused by uneven cooling, improving bottle consistency. Cooling channels with spiral, zoned, or pin-point designs enhance temperature control and uniformity. High thermal conductivity materials and additive manufacturing for conformal cooling channels boost cooling performance.
Efficient cooling systems protect machine components from heat damage, ensure uniform bottle wall thickness, and allow continuous operation. Optimized cooling reduces cycle time, increases throughput, and improves first-pass yield. The following table shows the impact of cooling system optimization on production:
Performance Aspect
Before Optimization
After Optimization
Improvement (%)
Average Cycle Time (seconds)
12
9.8
18.3%
Bottles Produced per Hour
3000
3670
22.3%
First-Pass Yield (%)
92
98
6.5%
Defect Rate (%)
8
2
75.0%
Efficient cooling in a blow molding machine shortens production cycles and increases output. Uniform cooling prevents defects such as warpage, bottom bulging, and uneven wall thickness, resulting in bottles with better shape, clarity, and strength.
Control and Material Handling
Control System
A modern control system forms the backbone of the operation of bottle blow molding machine. Operators rely on advanced interfaces that provide real-time monitoring and programmable settings. These systems integrate PLC and CNC technology, which automate the process and allow precise adjustments for temperature, pressure, injection speed, and cycle time. The control center manages every stage of the operation, ensuring consistent output and minimal defects. Automation in the control system improves production efficiency and reduces errors. Sensors and feedback mechanisms detect defects in bottle weight, wall thickness, and shape, maintaining high standards for pet blowing machine output. User-friendly interfaces simplify operation and reduce training time for staff. Maintenance protocols and technical support keep the blow molding machine running reliably. Automated controls also enable quick changeovers, supporting flexible production needs.
Operators benefit from automated defect detection, which ensures only quality bottles proceed to packaging. This reduces waste and supports sustainability goals in the operation of bottle blow molding machine.
Low maintenance requirements and reliable technical support
Material Handling
Efficient material handling supports every stage of the pet blowing machine process. Facilities use ergonomic workstation designs to reduce injuries and improve productivity. Bin dumpers lift and empty large containers of bottle caps, minimizing risky manual handling. Adjustable lift tables and work surfaces allow employees to personalize workstation height, enhancing comfort and safety. Specialized equipment replaces physical labor, avoiding force and repetitive motions.
Material handling systems include receiving hoppers with vibration devices to promote resin flow, bag dumping stations with dust hoods for safe unloading, and flexible screw conveyors matched to resin characteristics. Pneumatic conveying systems move resin through air lines, while bulk bag dischargers improve safety and efficiency. Smart pneumatic valves and IoT-enabled devices precisely control the blow molding machine process, reducing defective bottles and waste. Automated filling control systems achieve high accuracy, preventing underfilled or overfilled bottles. High-throughput testing systems ensure only quality bottles reach packaging, advancing sustainability by minimizing material waste.
Common material handling solutions:
Ergonomic workstations and adjustable surfaces
Bin dumpers and bulk bag dischargers
Pneumatic and screw conveyors
Automated filling and testing systems
Ejection System
The ejection system in a pet blowing machine removes molded bottles from the mold after solidification. This system overcomes the tight fit caused by shrinkage during cooling. Mechanical means such as ejector pins, sleeves, valve ejectors, stripper rings, and air ejection safely release bottles without damage. The system also vents gases and releases vacuums that form between the bottle and mold core, which is critical for thin-walled or brittle bottles. Proper surface finishing of mold contact areas ensures smooth ejection and prevents scratches or cracks.
Operators face challenges such as part sticking due to adhesion and surface friction, insufficient ejection force, and improper pin design. Solutions include using release agents, optimizing mold surface finish, increasing ejection force, and modifying pin shape. Adjusting exhaust time and repairing exhaust valves also improve operation. The ejection system ensures smooth, damage-free removal of bottles, which is essential for reliable operation of bottle blow molding machine and pet blowing machine performance.
A well-maintained ejection system supports high-quality output and reduces downtime in the blow molding machine process.
Types of Bottle Blow Molding Machine
PET Blow Molding Machine

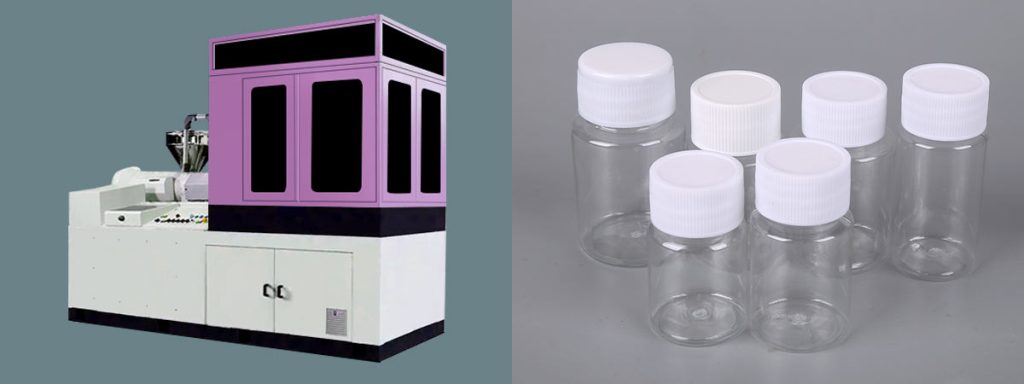

A pet blow molding machine uses several specialized components to produce high-quality bottles for many applications. The process begins with a preform feeder that automates the loading of PET preforms, which is unique to this type of machine. The heating system uses infrared technology to heat preforms evenly, preparing them for blowing. The blowing station then shapes the heated preform inside custom molds using high-pressure air. The cooling system solidifies the bottles quickly, helping them maintain their shape and clarity.
Operators rely on a control system with PLCs and servo motor drives to monitor and adjust the blowing process. This system ensures consistent output and reduces defects. Some pet blowing machines use a full electric blow molding variant, which eliminates oil and lubrication, lowering maintenance and environmental impact. These machines support a wide range of applications, including beverage, cosmetic, and pharmaceutical bottles.
Automatic pet blow molding machines offer higher production capacity and efficiency than manual machines. They reduce labor costs and provide consistent quality, making them ideal for high-volume applications.
Essential components of a pet blow molding machine:
Operators benefit from several advantages of using a pet blow molding machine and ISBM machine. These include shortened production cycles, improved efficiency, and enhanced molding precision. Automation reduces labor costs and conserves energy by recycling plastic particles. ISBM machine requires less factory space, making them suitable for facilities with limited room.
ISBM machine produces bottles with superior clarity and barrier properties, making them ideal for beverage and cosmetic applications. The process allows for versatility in bottle shapes and sizes, supporting a wide range of applications. Operators achieve cost-effective production and sustainability benefits, including recyclability and reduced carbon emissions.
ISBM machine delivers high-speed, precise manufacturing with consistent size, shape, and density. They support mass production and meet strict regulatory standards for product safety and quality.
Operators who invest in proper maintenance and training see fewer defects and longer machine life.
FAQ
What Maintenance Does a Plastic Bottle Molding Machine Require?
Operators should clean the extruder, inspect the mold, and check the clamping system regularly. They must also monitor heating and cooling systems. Routine lubrication and calibration help prevent breakdowns and ensure consistent bottle quality.
How Does the Control System Improve Production?
The control system automates temperature, pressure, and cycle timing. It uses sensors to detect defects and allows quick adjustments. This automation increases efficiency, reduces errors, and supports high-quality bottle output.
Which Materials Work Best for Bottle Molding?
PET, HDPE, and PP are the most common materials. PET offers clarity and strength. HDPE provides durability. PP resists heat. Each material suits different bottle applications.
Why Is Cooling Important in Blow Molding?
Cooling solidifies the plastic quickly. It prevents warping and ensures bottles keep their shape. Efficient cooling also shortens cycle times and increases production rates.
Can One Machine Make Different Bottle Shapes?
Yes, operators can change molds to produce various shapes and sizes. The machine must support quick mold changes for flexible production. Mold design determines the final bottle appearance.
