Overview of Materials Frequently Used in Stretch Blow Molding

automatic-blow-moulding-machine

Stretch blow molding relies on several blow molding materials, including polyethylene terephthalate (PET), high-density polyethylene (HDPE), polypropylene (PP), polycarbonate (PC), polyethylene naphthalate (PEN), and other plastic types. PET stands out due to its superior mechanical properties, excellent clarity, and effective barrier performance, which help preserve the contents of bottles. PET bottles account for 67% of the global beverage market, reflecting their dominance in the blow molding process. ISBM machine efficiently processes these materials, supporting the production of durable and attractive bottles for various applications.

Key Takeaways

  • PET is the leading choice for stretch blow molding due to its clarity, strength, and excellent barrier properties, making it ideal for beverage bottles.
  • Selecting the right material for blow molding involves evaluating clarity, strength, cost, and compatibility with the ISBM machine to ensure high-quality production.
  • HDPE offers excellent chemical resistance and durability, making it suitable for food and industrial packaging, despite its lack of clarity compared to PET.
  • Polypropylene is a cost-effective option for lightweight containers, but manufacturers must consider its limitations, such as high flammability and moisture sensitivity.
  • Future trends in stretch blow molding include the use of bioplastics and improved recycling methods to enhance sustainability in bottle production.

Stretch Blow Molding Materials

Material Suitability Criteria

Selecting the right types of materials for stretch blow molding depends on several important factors. Manufacturers look for plastics that offer clarity, strength, and compatibility with the blow molding process. The ISBM machine plays a key role in processing these materials, as it must handle the resin efficiently to produce high-quality bottles and containers.

The following table summarizes the main criteria for choosing materials in the blow molding process:

CriteriaDescription
Type of material being moldedEvaluate properties like melting point, shrinkage rate, and moldability for optimal performance.
Mechanical and electrical propertiesAlign material choice with specific physical and chemical requirements for durability.
Desired finish and dimensional accuracyChoose materials that influence product characteristics for precise dimensions and smooth finishes.
Cost of materialsConsider cost-effectiveness while ensuring quality to stay within project budget.

PET stands out among plastics because its structure allows for biaxial stretching, which increases clarity and strength even in thin-walled bottles. HDPE, or high density polyethylene, is naturally opaque due to its crystalline structure, so it does not provide the same clarity as PET. Polypropylene, or PP, is lighter and less expensive than PET, but it often needs additives to match PET’s transparency. Each resin offers unique benefits, so manufacturers must match the material to the intended use of the bottles or containers.

ISBM Machine Considerations

The ISBM machine determines which materials can be processed efficiently in the blow molding process. It must heat and stretch the plastic resin to the correct temperature and orientation. This ensures the final product meets the required strength and clarity standards.

Different plastics, such as PET, HDPE, PP, LDPE, PVC, ABS, and others, require specific process settings. For example, PET benefits from orientation during the process, which improves its toughness and gas barrier properties. HDPE serves as a good moisture barrier but lacks the clarity and gas barrier performance of PET. The ISBM machine must adjust for each resin to achieve the best results.

Manufacturers also consider the cost and availability of materials. They select resins that balance performance and budget. The process must support the chosen plastic, whether it is polyethylene, LDPE, or another type. The ISBM machine’s flexibility allows for the production of a wide range of bottles and containers using different materials.

Material Profiles

PET (Polyethylene Terephthalate)

PET remains the leading choice for stretch blow molding, especially in the production of plastic bottles. The ISBM machine processes PET efficiently, allowing manufacturers to achieve high clarity and strength through biaxial stretching. PET offers excellent transparency, lightweight design, and energy-efficient production. These properties make PET ideal for beverage bottles and food packaging.

PET’s mechanical and chemical properties change with recycling. Lower stretch-blown volumes for recycled PET correlate with earlier nucleation. The natural draw ratio decreases in recycled PET compared to virgin PET. Mechanical recycling leads to variations in microstructural, thermal, and mechanical properties.

Recycling LoopsStretchability MeasurementDrawability Impact
One LoopMeasured above glass transition temperatureSignificant loss observed
Two LoopsMeasured above glass transition temperatureFurther reduction in drawability
Four LoopsMeasured above glass transition temperatureNotable decrease in stretch-blown volumes
Advantages of PETLimitations of PET
High recyclability and sustainabilityInconsistent recycling practices globally
Lightweight design reduces transport costsPerformance limitations in high-end packaging
Transparency enhances product visibilityDependence on petroleum-based raw materials
Energy-efficient production processCrystallinity affects transparency in thicker materials

Manufacturers value PET for its clarity and barrier properties, but they must consider limitations such as inconsistent recycling and dependence on petroleum-based raw materials. PET’s behavior during the blow molding process is linked to its uniaxial stretching, and the ISBM machine must adjust settings for recycled PET to maintain quality.

HDPE (High Density Polyethylene)

HDPE is another popular resin in stretch blow molding. The ISBM machine can process HDPE to produce durable bottles with excellent chemical resistance. HDPE’s crystalline structure results in natural opacity, which limits its use for applications requiring transparency.

High density polyethylene is favored for its barrier properties, chemical resistance, and recyclability. These characteristics ensure product safety and freshness, making HDPE suitable for food and beverage containers, personal care products, and industrial packaging.

PropertyPETPPHDPE
Alcohol ResistanceGoodGoodGood
Alkali ResistancePoorGoodGood
Solvent ResistanceGoodPoorPoor
Oil ResistanceFairGoodGood
Acid ResistanceFairGoodGood
Overall Chemical ResistanceGoodGoodExcellent
  • Food and beverage: HDPE containers preserve product freshness and safety.
  • Personal care and cosmetics: HDPE offers clarity and customizable aesthetics.
  • Industrial applications: HDPE packaging is durable and chemically resistant.

HDPE’s main limitation is its lack of clarity compared to PET. The ISBM machine must optimize process settings to achieve the best barrier properties and durability.

PP (Polypropylene)

PP is a versatile resin used in stretch blow molding for bottles and containers. The ISBM machine can process polypropylene to create lightweight products with good chemical resistance. PP is less expensive than PET and HDPE, making it attractive for cost-sensitive applications.

Polypropylene offers good resistance to alkalis, oils, and acids. It is commonly used for food packaging, personal care bottles, and household containers. PP’s lightweight nature reduces shipping costs and supports sustainability goals.

PropertyPETPPHDPE
Alcohol ResistanceGoodGoodGood
Alkali ResistancePoorGoodGood
Solvent ResistanceGoodPoorPoor
Oil ResistanceFairGoodGood
Acid ResistanceFairGoodGood
Overall Chemical ResistanceGoodGoodExcellent

However, PP has several limitations:

  • High manufacturing time
  • Long preparation time
  • Sensitivity to moisture contact
  • Weak UV resistance
  • Poor bonding characteristics
  • High flammability

Manufacturers must weigh these drawbacks against PP’s advantages when selecting materials for bottles and packaging.

PC (Polycarbonate)

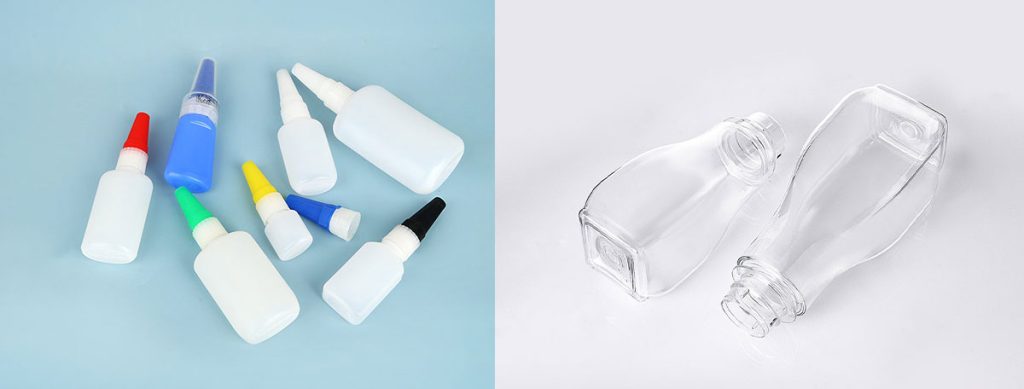

stretch-blow-molding

Polycarbonate stands out for its durability and clarity. The ISBM machine enables the production of complex shapes and designs using PC, making it suitable for specialized bottles and containers. PC’s impact resistance and temperature tolerance allow it to perform well in high-stress and hot environments.

PropertyDescription
DurabilityPC containers exhibit superior impact resistance, making them suitable for high-stress applications.
ClarityThe transparency of PC allows for the production of clear bottles and containers, ideal for showcasing the product within.
Temperature ResistancePC’s ability to withstand high temperatures makes it suitable for containers that will be exposed to hot environments or require sterilization.
Design FlexibilityThe stretch blow molding process enables the creation of complex shapes and designs, offering significant versatility in packaging solutions.

Despite these strengths, PC has notable disadvantages in food and beverage packaging.

DisadvantageDescription
Stress CrackingThe biggest disadvantage of polycarbonate (PC) is stress cracking, which can occur during production.
Health ConcernsPC is associated with bisphenol A (BPA), linked to various health problems, reducing its usage in recent years.
  • BPA in PC has been linked to:
    • Chromosome damage in female ovaries
    • Reduced sperm production in males
    • Early onset of puberty
    • Various behavioral changes

Manufacturers often avoid PC for food bottles due to these health concerns, but it remains valuable for industrial and specialty applications.

PEN (Polyethylene Naphthalate)

PEN is a high-performance resin used in stretch blow molding for bottles that require superior barrier and thermal properties. The ISBM machine can process PEN with minimal adjustments to existing PET molds, which simplifies production.

PEN can be molded with minimal adjustments to existing PET molds, indicating its compatibility and ease of processing. However, it has a narrower processing window compared to PET, with its stretch ratio being more sensitive to blowing conditions. Additionally, PEN exhibits superior barrier and thermal performance, along with enhanced mechanical properties such as modulus and tensile strength when compared to PET.

PEN’s enhanced mechanical properties and barrier performance make it ideal for demanding applications.

  • PEN is used in beer bottles due to its superior barrier properties against oxygen and moisture.
  • It provides approximately five times more barrier for carbon dioxide, oxygen, and water vapor transmission compared to PET.
  • PEN is also utilized in cosmetic packaging, benefiting from its high strength and temperature resistance.

The main limitation of PEN is its narrower processing window, which requires precise control during the blow molding process.

Other Materials (ABS, LDPE, Nylon, PVC, TPE, Acrylic)

Manufacturers use a variety of other plastics in stretch blow molding, each with unique properties and applications. The ISBM machine must adjust settings for these types of materials to achieve optimal results.

MaterialPropertiesCommon Applications
ABSHard, opaque, molds well, less chemical resistanceElectronics housings, small appliances
LDPEFlexible, stress crack resistant, translucentSqueeze bottles, traffic channelizers, plastic bags
NylonTranslucent, decent chemical resistance, high heat performanceTubes and reservoirs in automotive
PVCRigid and soft forms, translucent, potential chemical issuesMedical parts, bellows, traffic cones
TPEOpaque, replaces natural rubber, molds wellAutomotive parts, grip surfaces
AcrylicClarity, low-cost, challenges in processingLighting lenses
  • ABS is valued for its hardness and moldability, but it offers limited chemical resistance.
  • LDPE is flexible and stress crack resistant, making it suitable for squeeze bottles and bags.
  • Nylon provides high heat performance and chemical resistance, often used in automotive tubes.
  • PVC comes in rigid and soft forms, but potential chemical issues limit its use in food packaging.
  • TPE replaces natural rubber in automotive parts and grip surfaces.
  • Acrylic offers clarity at a low cost, but processing challenges restrict its use to lighting lenses.

Manufacturers select these resins based on the specific requirements of their applications, balancing properties, cost, and process compatibility.

Material Comparison

Properties

Manufacturers select materials for stretch blow molding by evaluating their physical and chemical characteristics. Each resin offers unique advantages for the blow molding process. PET provides high clarity and good impact resistance, making it ideal for plastic bottles that require transparency. HDPE delivers a high strength-to-density ratio and impact resistance, which suits containers for industrial and household use. Polypropylene stands out for its chemical resistance and flexibility, supporting food packaging and containers. Polycarbonate features high impact resistance and transparency, which benefits safety equipment and optical products. PEN offers excellent barrier properties and thermal stability, making it suitable for high-performance packaging.

MaterialImpact ResistanceClarityKey PropertiesSuitability for Packaging
PETGoodHighExcellent barrier against moisture and gasesBeverage bottles, food containers, films
HDPEN/AN/AHigh strength-to-density ratio, impact resistanceContainers, industrial applications
PPN/AN/AGood chemical resistance, flexibilityFood packaging, containers
PCN/AN/AHigh impact resistance, transparencySafety equipment, optical applications
PENN/AN/AExcellent barrier, thermal stabilityHigh-performance packaging

Cost

The cost of materials plays a major role in the selection of plastics for bottles and packaging. Raw materials account for 60-70% of the total cost of a plastic bottle. Fluctuating resin prices result from changes in the petroleum market and global supply and demand. Manufacturers must balance cost with the desired properties of each resin. Some types of materials, such as PET and HDPE, offer a good mix of affordability and performance. Others, like PEN and polycarbonate, may cost more but provide specialized benefits.

  • Raw materials make up most of the expense in bottle production.
  • Resin prices change due to market and supply factors.
  • Manufacturers consider both cost and performance when choosing plastics.

Applications: Bottles and Packaging

Different materials support a wide range of applications in bottles and packaging. PET is widely used for beverage bottles, food packaging, and personal care products. HDPE serves as the main choice for containers holding milk, detergents, and cleaning liquids. Polypropylene works well for creams, serums, and hot-fill juice bottles. Polycarbonate finds use in safety equipment and specialty bottles. PEN is chosen for beer bottles and high-performance packaging due to its barrier properties.

  • PET: Beverage bottles, food packaging, cosmetic bottles, sanitizer, textiles.
  • HDPE: Shampoo bottles, lotion containers, cleaning liquids, milk, motor oil, detergents.
  • PP: Creams, serums, high-value formulas, hot-fill juice bottles, retorted packaging.
  • PC: Safety equipment, optical applications, specialty bottles.
  • PEN: Beer bottles, cosmetic packaging, high-performance containers.

Manufacturers rely on the process flexibility of stretch blow molding to produce bottles from various resins, including polyethylene, LDPE, PVC, and ABS. Each plastic supports specific applications based on its properties and cost.

Conclusion

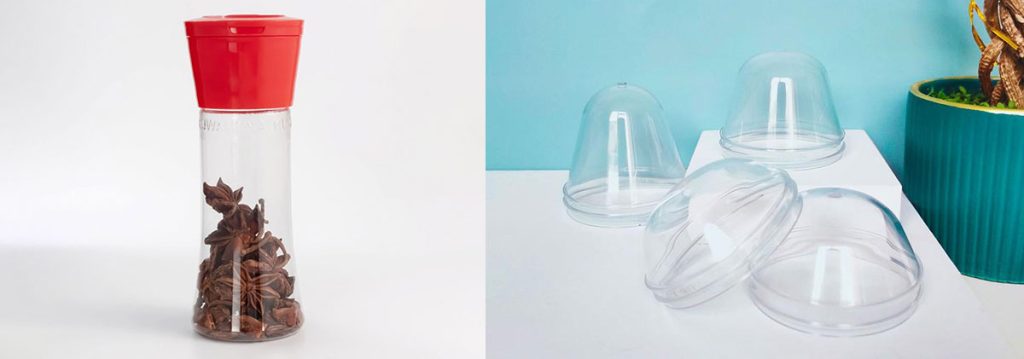

stretch-blow-moulding

PET leads the market for bottles in stretch blow molding, driven by its clarity and durability. Manufacturers select materials by evaluating resin properties, cost, processing needs, and finished-part objectives.

Key FactorDescription
Plastic Resin PropertiesUnderstanding the specific properties of the resin is crucial for performance.
Material CostCost considerations can impact material selection and overall project budget.
Processing PropertiesThe ability to process the material effectively is essential for production.
Finished-Part ObjectivesThe end-use requirements dictate the material choice and design approach.

Plastic bottles simplify daily life, but improper management of polyethylene and other plastics can harm the environment. PET recycling rates remain highest, yet pollution persists.

Manufacturers must match material properties to the blow molding process and ISBM machine capabilities. Future trends include bioplastics and improved recycling, supporting sustainable bottle production.

FAQ

What Makes PET the Preferred Material for Beverage Bottles?

PET offers high clarity, strength, and excellent barrier properties. These features help preserve drinks and display them attractively. Manufacturers also value PET for its lightweight design and recyclability.

Can ISBM Machine Process All Types of Plastics?

ISBM machine can process many plastics, including PET, HDPE, PP, and PC. However, each resin requires specific temperature and process settings. Not every plastic is suitable for stretch blow molding.

How Does Recycling Affect PET Bottle Quality?

Recycling changes PET’s mechanical and thermal properties. Each recycling loop reduces stretchability and drawability. Manufacturers must adjust ISBM machine settings to maintain bottle quality when using recycled PET.

Which Material Offers the Best Chemical Resistance?

HDPE provides the best chemical resistance among common stretch blow molding materials. It resists acids, alkalis, and oils, making it ideal for containers that store cleaning products or chemicals.
