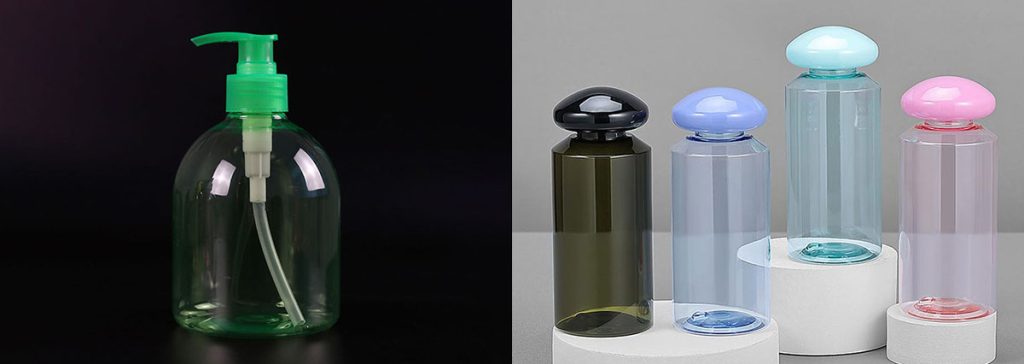

Injection molding bottles have changed the landscape of modern packaging by combining scientific precision with technological innovation. These bottles earn their unique status from advanced processes that deliver remarkable consistency and strength. ISBM machines now produce bottles in a single stage, streamlining the journey from raw material to finished product. This technology ensures high transparency, uniformity, and the ability to use recyclable materials like PET and PP. The result is a bottle that not only meets strict quality standards but also supports sustainability goals.
Key Takeaways
- Injection molding bottles offer exceptional precision and consistency, ensuring every bottle meets strict industry standards and fits perfectly with its cap.
- The design flexibility of injection blow molding allows for rapid prototyping and customization, enabling manufacturers to create unique bottles that stand out in the market.
- Strong thermoplastic materials used in injection molding provide durability and resistance to pressure, making these bottles suitable for various applications.
- The injection molding process is efficient, with cycle times ranging from 15 seconds to 2 minutes, allowing for high-volume production of quality bottles.
- Sustainability is enhanced through the use of recyclable materials and energy-efficient processes, supporting environmental goals in the packaging industry.
Injection Molding Bottles Features
Precision and Consistency
Injection molding bottles stand out for their exceptional precision and repeatability. Manufacturers rely on advanced molding techniques to achieve exact dimensions, especially in critical areas like the neck and threads of each container. This accuracy ensures that every bottle fits perfectly with its cap and meets strict industry standards.
Automated inspection systems monitor the molding process in real time, checking temperature, pressure, and injection speed. These systems help maintain tight control over raw material quality and mold design, which includes features like venting and cooling channels. After production, quality assurance teams confirm that each bottle meets required specifications before shipment.
The following table compares the dimensional accuracy of injection molding bottles with those produced by extrusion blow molding:
| Method | Dimensional Accuracy | Neck Precision | Aesthetic Appeal |
|---|---|---|---|
| Injection Blow Molding | Superior | Exceptional | High |
| Extrusion Blow Molding | Good but less critical | Trimmable | Moderate |
Manufacturers choose injection molding for applications that demand fine details and high dimensional accuracy. This method produces bottles with uniform characteristics, making it ideal for industries where consistency is essential.
Design Flexibility
Injection molding offers unmatched flexibility in bottle design. Engineers can create containers with a wide range of shapes, sizes, and functional features. The process supports rapid prototyping, allowing designers to move from concept to physical prototype in just hours. SIPA’s 3D printing capabilities enable quick customization of bottles, including color, filling, capping, and labeling.
The design process begins with an idea, which is modeled in 3D software and fabricated using a 3D printer. This approach allows for fast testing and iteration of unique bottle designs before mass production. While 3D printing excels at creating prototypes, injection molding is more efficient for producing large quantities of customized containers.
Common design features enabled by injection molding include:
- Various cap shapes, such as screw caps and flip-top caps
- Tamper-evident rings and leak-proof designs
- Standard product dimensions, like 28mm, 30mm, and 38mm necks
- Appearance options, including glossy, matte, and anti-slip textures
- Multi-cavity molds for efficient production
- Lightweight and durable thermoplastic materials
- Functional surfaces, such as UV resistance and anti-slip finishes
- Automated inspection for consistent quality
This flexibility allows manufacturers to meet diverse market demands and create bottles that stand out on store shelves.
Material Strength
Material selection and manufacturing play a crucial role in the strength and durability of injection molding bottles. Engineers often choose thermoplastic materials like polyethylene, polycarbonate, and nylon for their mechanical properties and versatility. These plastics offer high tensile and flexural strength, making them suitable for containers that must withstand pressure, impact, and temperature changes.
The table below highlights the mechanical strengths of common thermoplastics used in bottle production:
| Plastic Type | Maximum Temperature (°C) | Tensile Strength (psi) | Flexural Strength (psi) | Impact Strength (ft-lb/in) |
|---|---|---|---|---|
| Polyethylene (PE) – HDPE | 121 | 3200 to 4500 | 145,000 to 225,000 | 0.4 to 4 |
| Polyethylene (PE) – LDPE | 90 | 1200 to 4000 | 35,000 to 48,000 | 56 to 150 |
| Polycarbonate (PC) | 316 | 8500 | 13,500 | 2 to 18 |
| Nylon (PA) | 177 | 6000 to 24,000 | 390,000 to 1,100,000 | 2 to 8 |
Advancements in process control have improved the use of recycled and biodegradable thermoplastic materials. Manufacturers now optimize energy efficiency and reduce waste by reusing scrap plastic and incorporating post-consumer resins. Continuous monitoring of process parameters helps identify and correct defects, supporting sustainable production practices.
Injection molding bottles benefit from these material strengths, offering reliable performance and supporting environmental goals. The combination of precise molding, flexible design, and strong thermoplastics makes these containers a preferred choice for many industries.
Plastic Injection Molding Process
The plastic injection molding process transforms raw thermoplastic into precise, high-quality bottles and containers. This process involves several key steps: heating and filling, pressure and cooling, and ejection with quality control. Each stage relies on scientific principles and advanced technology to ensure the final product meets strict industry standards.
Heating and Filling
The process begins with heating thermoplastic pellets until they reach a molten state. Specialized machines control the temperature to match the specific requirements of each material. The table below shows the melting and injection molding temperatures for common plastics used in bottle production:
| Plastic Type | Melting Temperature (°C) | Injection Molding Temperature (°C) |
|---|---|---|
| PP + 30% GF Talc Filled | 250-290 | 40-80 |
| NYLON 11 | 220-250 | 40-110 |
| NYLON 12 | 190-200 | 40-110 |
| CAB | 170-240 | 40-50 |
| ABS/PC ALLOY | 245-265 | 40-80 |
| ABS | 200–280 | N/A |
| PP | 220–280 | N/A |
| PET (unfilled) | 265–280 | N/A |
| HDPE | 180–280 | N/A |
Once the thermoplastic reaches the correct temperature, the machine injects the molten material into a mold cavity. The viscosity of the molten plastic plays a critical role during this stage:
- High viscosity can cause uneven filling, leading to variations in preform weight and wall thickness.
- Increased viscosity requires higher injection pressures, which may stress mold components.
- Low viscosity allows the material to flow quickly, but may result in flash or overflow.
Engineers monitor these factors to ensure each container receives the right amount of material and fills the mold completely.
Pressure and Cooling
After filling, the process applies high pressure to force the molten thermoplastic into every detail of the mold. The following table outlines typical pressure levels and their impact on product quality:
| Pressure Type | Typical Range | Influence on Quality |
|---|---|---|
| Injection Pressure | 40 to 200 MPa | Ensures proper mold filling; insufficient pressure can lead to short shots or incomplete fills. |
| Holding (Packing) Pressure | Lower than injection | Maintains cavity fullness during cooling; too low can cause sink marks and voids, while too high can lead to overpacking. |
Proper pressure ensures that each bottle or container forms with accurate dimensions and strong walls. However, incorrect pressure settings may cause defects:
- Underpressure can result in short shots or incomplete fills.
- Overpressure may cause flashing, internal stress, or mold damage.
- Low holding pressure can lead to sink marks and voids, while excessive holding pressure risks overpacking.
The cooling stage begins immediately after the mold fills. Rapid cooling solidifies the thermoplastic, locking the container’s shape and features. The cooling rate affects both the crystallinity and strength of the bottle:
- Rapid cooling of PET creates low crystallinity (under 20%) and high transparency (over 90% light transmittance).
- Slow cooling increases crystallinity (above 30%) but reduces transparency (around 70% light transmittance).
- Preform sidewalls typically achieve 18–22% crystallinity for clarity, while the bottom region may reach 30–35% for added strength.
- Optimizing bottom crystallinity to 30–32% can increase impact strength by up to 40%.
This careful balance between cooling speed and crystallinity ensures that each container meets both visual and mechanical requirements.
Ejection and Quality Control
Once the thermoplastic solidifies, the process moves to ejection. Automated systems use mechanical arms or air pressure to remove the finished bottle from the mold. This step must happen quickly to maintain production speed and prevent damage to the container. Advanced machines often include automatic lubrication and cylinder drive systems for efficient ejection.
The table below summarizes the final steps:
| Process | Description |
|---|---|
| Cooling | Rapid cooling solidifies the bottle structure, ensuring shape retention and faster production cycles. |
| Ejection | Bottles are ejected post-cooling and undergo quality control to meet production standards. |
Quality control is essential at this stage. Modern plastic injection molding lines use advanced monitoring systems to track temperature, pressure, and injection speed in real time. Operators can make immediate adjustments to maintain product quality. Every container must pass inspection before leaving the production line.
Common defects detected during quality control include:
- Flow lines: Wavy patterns on the surface, often near mold entry points.
- Burn marks: Black or rust-colored discoloration on edges or surfaces.
- Sink marks: Depressions or craters in thick sections.
- Surface delamination: Separation of the surface into thin layers.
- Weld lines: Marks where two flows of molten resin meet.
- Short shots: Incomplete filling of the mold cavity.
- Flash: Excess molding material appearing as a thin lip or protrusion.
Automated inspection systems help identify these issues quickly, ensuring that only high-quality bottles and containers reach the market.
The plastic injection molding process stands out for its speed and efficiency. Cycle times range from 15 seconds to 2 minutes, making it the fastest method for high-volume production. This efficiency, combined with precise control over every stage, allows manufacturers to produce strong, reliable, and visually appealing bottles and containers at scale.
Injection Blow Molding and ISBM Machine
Process Overview
Injection blow molding stands out as a multi-step process that shapes thermoplastic into precise bottles and containers. The process begins with injection molding of the preform, also known as the parison. The machine heats the thermoplastic resin and injects it into a preform mold. Next, the preform rotates into the blow mold cavity. Compressed air then inflates the preform, forcing it to take the shape of the mold. The container cools and ejects from the machine, ready for inspection and packaging.
The ISBM machine advances this process by integrating multiple steps into a single, continuous operation. This integration eliminates the need for intermediate storage, which reduces contamination risks and surface scratches. The ISBM process uses residual heat from injection molding for stretching, which lowers energy consumption and improves efficiency. The result is a container with enhanced mechanical properties and superior dimensional accuracy.
Industry Applications
Injection blow molding and ISBM machine serve a wide range of industries. The food and beverage sector values the speed and efficiency of this process for packaging water, juices, and soft drinks. Medical and pharmaceutical companies rely on injection molding for sanitary benefits and the use of high-grade thermoplastic materials. The cosmetics industry benefits from the ability to create intricate designs and produce containers efficiently.
| Industry | Primary Reasons for Adoption |
|---|---|
| Food and Beverage | Speed, efficiency, versatility |
| Medical and Pharmaceutical | Sanitary benefits, high-grade plastics |
| Cosmetics | Intricate designs, efficient production |
Medical device injection molding also uses this technology to produce sterile and precise containers for sensitive products.
Sustainability Benefits
ISBM machine contributes to sustainability in several ways. These machines reduce energy consumption by over 50% compared to conventional blow molding equipment. The process supports the use of recycled thermoplastic materials, which helps minimize waste and utilize existing resources. Lightweight bottle designs lower carbon emissions during transportation, as less energy is needed to move products. The global adoption of ISBM machine continues to grow, driven by demand for sustainable packaging and advancements in technology. Companies increasingly shift toward recycled materials and innovative designs to address environmental concerns.
ISBM bottles are recyclable and can be produced from recycled thermoplastic, supporting a circular economy and reducing the carbon footprint of bottle production.
Conclusion
Injection molding bottles stand apart due to scientific control over polymer behavior and precise manipulation of temperature and pressure. The process enables intricate bottle designs, high-quality finishes, and tight tolerances. Companies benefit from lightweight bottles, chemical resistance, and recyclability. Injection blow molding and molding processes continue to evolve, driven by new materials and energy-efficient machines. Experts predict that injection molding will transform the bottle industry by advancing sustainability, improving efficiency, and supporting closed-loop recycling.
FAQ
What Materials Do Manufacturers Commonly Use for Injection Molding Bottles?
Manufacturers often use PET, HDPE, PP, and polycarbonate. These plastics offer strength, clarity, and chemical resistance. PET bottles work well for beverages. HDPE suits household products. Polycarbonate provides impact resistance. Each material supports different industry needs.
How Does Injection Molding Improve Bottle Quality?
Injection molding creates bottles with precise dimensions and smooth surfaces. Automated controls monitor temperature and pressure. This process reduces defects and ensures each bottle meets strict quality standards. Consistency remains high across large production runs.
Are Injection Molded Bottles Recyclable?
Most injection molded bottles use recyclable plastics like PET and HDPE. Recycling facilities accept these materials. Using recycled resins in production helps reduce waste and supports environmental sustainability.
What Industries Benefit Most from Injection Molded Bottles?
- Food and beverage
- Pharmaceuticals
- Cosmetics
- Household chemicals
These industries value the process for its precision, design flexibility, and ability to meet safety standards.
